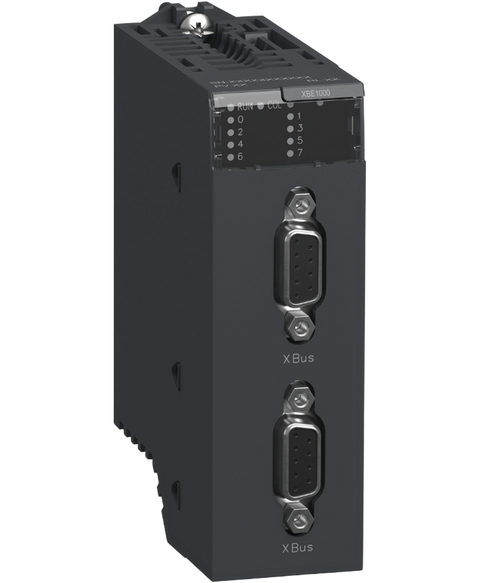

Schneider Electric BMXXBE1000
backplane expander M340 - for multiracks configuration
This Schneider Electric BMXXBE1000 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Racks > Bus extender range and is referenced internally as PartLogic SKU PL26805538577.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon M340 automation platform |
| Accessory / separate part category | Extension accessory |
| Accessory / separate part type | Backplane |
| Accessory / separate part designation | Backplane expander |
| Product compatibility | BMXXBP0600 | BMXXBP0400 | BMXXBP0800 | BMXXBP1200 |
| Accessory / separate part destination | For multiracks configuration |
| Electrical connection | 2 female connectors SUB-D 9 |
| Local signalling | 1 LED green for operating status (RUN) bus | 1 LED red for collision error (COL) rack | 4 LEDs green for rack adresses status |
| Current consumption | 160 mA at 24 V DC | 22 mA at 3.3 V DC |
| Module format | Standard |
| IP degree of protection | IP20 |
| Ambient air temperature for operation | 0…60 °C |
| Relative humidity | 10…95 % without condensation |
| Directives | 2014/35/EU - low voltage directive | 2014/30/EU - electromagnetic compatibility |
| Product certifications | CE | UL | CSA | RCM | EAC | Merchant Navy |
| Standards | IEC 61131-2 | IEC 61010-2-201 | UL 61010-2-201 | CSA C22.2 No 61010-2-201 | IACS E10 | EN/IEC 61000-6-5, interface type 1 and type 2 | EN/IEC 61850-3, location G |
| Environmental characteristic | Hazardous location class I division 2 |
| Protective treatment | TC |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.500 cm |
| Package 1 Width | 11.000 cm |
| Package 1 Length | 11.500 cm |
| Package 1 Weight | 173.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 2.910 kg |
