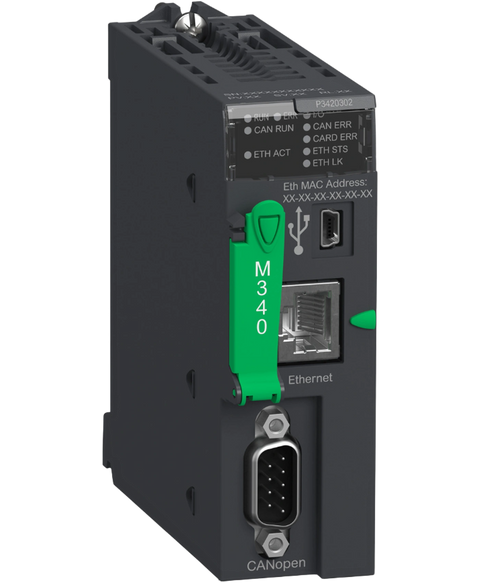

Product image for illustrative purposes only. Actual item may vary.
Schneider Electric BMXP3420302
The BMXP3420302 is a processor module from Schneider Electric's Modicon series, facilitating advanced control capabilities for automation systems. It supports up to 1024 discrete I,Os in multi-rack configurations and features two Ethernet communication modules, offering extensive connectivity options.
This Schneider Electric BMXP3420302 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Programmable logic controllers range and is referenced internally as PartLogic SKU PL26805543880.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$1,435.98
(inc. GST)
In Stock
| Range of product | Modicon M340 automation platform |
| Product or component type | Processor module |
| Concept | CANopen | Transparent Ready |
| Number of racks | 4 |
| Local I/O processor capacity (discrete) | 1024 I/O |
| Analogue I/O processor capacity | 256 I/O |
| Number of application specific channel | 36 |
| Control channels | Programmable loops |
| Motion control | Independent axis CANopen |
| Integrated connection type | USB port at 12 Mbit/s | CANopen master bus SUB-D 9, transmission mode: 2 twisted shielded pairs at 20 kbit/s...1 Mbit/s | Ethernet TCP/IP RJ45, transmission mode: 1 twisted pair at 10/100 Mbit/s |
| Communication module processor capacity | 2 Ethernet communication module | 4 AS-Interface module |
| embedded communication service | Network management (NMT) CANopen | Process Data Object (PDO) CANopen | Service Data Object (SDO) CANopen | Special functions (SYNC, EMCY, TIME) CANopen | Bandwidth management, Ethernet TCP/IP | Data Editor, Ethernet TCP/IP | Modbus TCP messaging, Ethernet TCP/IP | Rack Viewer, Ethernet TCP/IP | SNMP network administrator, Ethernet TCP/IP |
| Port Ethernet | 10BASE-T/100BASE-TX |
| Transmission rate | 1 Mbit/s 0…20 m 0…0.6 m | 125 kbit/s 0…500 m 0…10 m | 20 kbit/s 0…2500 m 0…300 m | 250 kbit/s 0…250 m 0…10 m | 50 kbit/s 0…1000 m 0…120 m | 500 kbit/s 0…100 m 0…10 m | 800 kbit/s 0…40 m 0…6 m |
| Bus type | CANopen M20 DS 301 V4.02 devices linked by daisy-chaining or tap junctions CSMA/CA | CANopen M20 DS 303-2 devices linked by daisy-chaining or tap junctions CSMA/CA | CANopen M20 DS 405 devices linked by daisy-chaining or tap junctions CSMA/CA |
| Number of server device(s) | 63 CANopen |
| Number of devices per segment | 0…16 for <205 m (CANopen) | 0…32 for <185 m (CANopen) | 0…64 for <160 m (CANopen) |
| Memory description | Supplied memory card (BMXRMS008MP) backup of programs, constants, symbols and data | Internal RAM 4096 kB | Internal RAM 256 kB data | Internal RAM 3584 kB program constants and symbols | Supplied memory card (BMXRMS008MP) activation of standard web server, class B10 |
| Maximum size of object areas | 32634 %Mi located internal bits | 32464 %MWi internal words | 32760 %KWi constant words |
| Default size of object areas | 1024 %MWi internal words located internal data | 256 %KWi constant words located internal data | 512 %Mi located internal bits |
| Application structure | 1 cyclic/periodic master task | 1 periodic fast task | No auxiliary task | 64 event tasks |
| Execution time per instruction | 0.12 µs Boolean | 0.17 µs double-length words | 0.25 µs single-length words | 1.16 µs floating points |
| Number of instructions per ms | 6.4 Kinst/ms 65 % Boolean + 35 % fixed arithmetic | 8.1 Kinst/ms 100 % Boolean |
| System overhead | 0.13 ms for fast task | 0.7 ms for master task |
| Current consumption | 135 mA at 24 V DC |
| Supply | Internal power supply via rack |
| Marking | CE | UL | CSA | RCM | EAC | UKCA | China RoHS | WEEE | IEC |
| Status LED | 1 LED (green) activity on Ethernet network (ETH ACT) | 1 LED (green) integrated machine/installation bus operational (CAN RUN) | 1 LED (green) processor running (RUN) | 1 LED (green) status of Ethernet network (ETH STS) | 1 LED (green) data rate (ETH 100) | 1 LED (red) I/O module fault (I/O) | 1 LED (red) integrated machine/installation bus fault (CAN ERR) | 1 LED (red) memory card fault (CARD ERR) | 1 LED (red) processor or system fault (ERR) |
| Net weight | 0.215 kg |
| Ambient air temperature for operation | 0…60 °C |
| Relative humidity | 5…95 % without condensation |
| IP degree of protection | IP20 |
| Protective treatment | TC |
| Directives | 2014/35/EU - low voltage directive | 2014/30/EU - electromagnetic compatibility | 2012/19/EU - WEEE directive |
| Product certifications | CE | UL | CSA | RCM | EAC | UKCA | Merchant Navy | CCSAus HazLoc Class I Division 2 Group A | CCSAus HazLoc Class I Division 2 Group B | CCSAus HazLoc Class I Division 2 Group C | CCSAus HazLoc Class I Division 2 Group D |
| Standards | IEC 61131-2 | IEC 61010-2-201 | UL 61010-2-201 | CSA C22.2 No 61010-2-201 | IACS E10 | EN/IEC 61000-6-5, interface type 1 and type 2 | EN/IEC 61850-3, location G |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.500 cm |
| Package 1 Width | 11.000 cm |
| Package 1 Length | 11.700 cm |
| Package 1 Weight | 249.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 4.109 kg |
