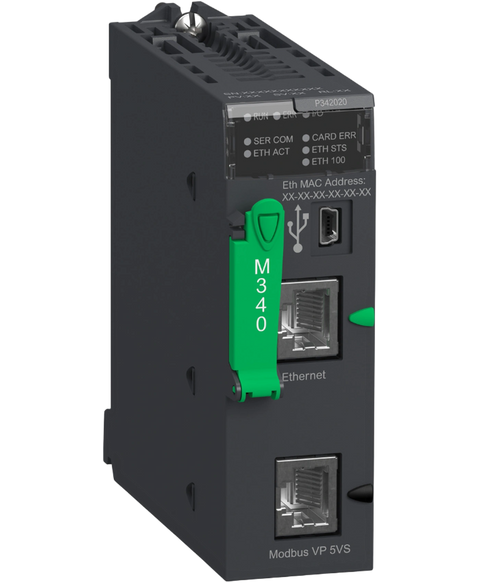

Schneider Electric BMXP342020
The BMXP342020 from Schneider Electric is a processor module designed to enhance automation capabilities. This component supports up to 256 analog I,Os and 1024 discrete I,Os, making it incredibly versatile for various control tasks.
This Schneider Electric BMXP342020 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Programmable logic controllers range and is referenced internally as PartLogic SKU PL26801431700.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$969.60
(inc. GST)
In Stock
| Range of product | Modicon M340 automation platform |
| Product or component type | Processor module |
| Concept | Transparent Ready | Modbus |
| Number of racks | 4 |
| Local I/O processor capacity (discrete) | 1024 I/O |
| Analogue I/O processor capacity | 256 I/O |
| Number of application specific channel | 36 |
| Monitoring | Diagnostic counters Modbus | Event counters Modbus |
| Control channels | Programmable loops |
| Integrated connection type | Non isolated serial link RJ45 character mode, transmission mode: asynchronous in baseband, RS232C, transmission mode: 2 twisted shielded pairs at 0.3...19.2 kbit/s full duplex | Non isolated serial link RJ45 character mode, transmission mode: asynchronous in baseband, RS485, transmission mode: 1 twisted shielded pair at 0.3...19.2 kbit/s half duplex | Non isolated serial link RJ45, master/slave Modbus, RTU/ASCII, transmission mode: asynchronous in baseband, RS232C, transmission mode: 1 twisted shielded pair at 0.3...19.2 kbit/s half duplex | Non isolated serial link RJ45, master/slave Modbus, RTU/ASCII, transmission mode: asynchronous in baseband, RS485, transmission mode: 1 twisted shielded pair at 0.3...19.2 kbit/s half duplex | USB port at 12 Mbit/s | Ethernet TCP/IP RJ45, transmission mode: 1 twisted pair at 10/100 Mbit/s |
| Communication module processor capacity | 2 Ethernet communication module | 4 AS-Interface module |
| embedded communication service | Bandwidth management, Ethernet TCP/IP | Data Editor, Ethernet TCP/IP | Modbus TCP messaging, Ethernet TCP/IP | Rack Viewer, Ethernet TCP/IP | SNMP network administrator, Ethernet TCP/IP |
| Port Ethernet | 10BASE-T/100BASE-TX |
| Number of devices per segment | 0…32 (character mode) | 0…32 (Modbus) |
| Number of devices | 2 point-to-point character mode | 2 point-to-point Modbus |
| Bus length | 0…10 m serial link non isolated character mode segment | 0…10 m serial link non isolated Modbus segment | 0…1000 m serial link isolated character mode segment | 0…1000 m serial link isolated Modbus segment | 0…15 m character mode point-to-point | 0…15 m Modbus point-to-point |
| Maximum tap links length | <15 m serial link non isolated character mode segment | <15 m serial link non isolated Modbus segment | <40 m serial link isolated character mode segment | <40 m serial link isolated Modbus segment |
| Number of addresses | 0…248 for character mode | 0…248 for Modbus |
| Requests | 1 K data bytes per request character mode | 252 data bytes per RTU request Modbus | 504 data bytes per ASCII request Modbus |
| Control parameter | One CRC on each frame (RTU) Modbus | One LRC on each frame (ASCII) character mode | One LRC on each frame (ASCII) Modbus |
| Memory description | Supplied memory card (BMXRMS008MP) backup of programs, constants, symbols and data | Internal RAM 4096 kB | Internal RAM 256 kB data | Internal RAM 3584 kB program constants and symbols | Supplied memory card (BMXRMS008MP) activation of standard web server, class B10 |
| Maximum size of object areas | 32634 %Mi located internal bits | 32464 %MWi internal words | 32760 %KWi constant words |
| Default size of object areas | 1024 %MWi internal words located internal data | 256 %KWi constant words located internal data | 512 %Mi located internal bits |
| Application structure | 1 cyclic/periodic master task | 1 periodic fast task | No auxiliary task | 64 event tasks |
| Execution time per instruction | 0.12 µs Boolean | 0.17 µs double-length words | 0.25 µs single-length words | 1.16 µs floating points |
| Number of instructions per ms | 6.4 Kinst/ms 65 % Boolean + 35 % fixed arithmetic | 8.1 Kinst/ms 100 % Boolean |
| System overhead | 0.13 ms for fast task | 0.7 ms for master task |
| Current consumption | 95 mA at 24 V DC |
| Supply | Internal power supply via rack |
| Marking | CE | UL | CSA | RCM | EAC | UKCA | China RoHS | WEEE | IEC |
| Status LED | 1 LED (green) activity on Ethernet network (ETH ACT) | 1 LED (green) processor running (RUN) | 1 LED (green) status of Ethernet network (ETH STS) | 1 LED (green) data rate (ETH 100) | 1 LED (red) I/O module fault (I/O) | 1 LED (red) memory card fault (CARD ERR) | 1 LED (red) processor or system fault (ERR) | 1 LED (yellow) activity on Modbus (SER COM) |
| Net weight | 0.205 kg |
| Ambient air temperature for operation | 0…60 °C |
| Relative humidity | 5…95 % without condensation |
| IP degree of protection | IP20 |
| Protective treatment | TC |
| Directives | 2014/35/EU - low voltage directive | 2014/30/EU - electromagnetic compatibility | 2012/19/EU - WEEE directive |
| Product certifications | CE | UL | CSA | RCM | EAC | UKCA | Merchant Navy | CCSAus HazLoc Class I Division 2 Group A | CCSAus HazLoc Class I Division 2 Group B | CCSAus HazLoc Class I Division 2 Group C | CCSAus HazLoc Class I Division 2 Group D |
| Standards | IEC 61131-2 | IEC 61010-2-201 | UL 61010-2-201 | CSA C22.2 No 61010-2-201 | IACS E10 | EN/IEC 61000-6-5, interface type 1 and type 2 | EN/IEC 61850-3, location G |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.500 cm |
| Package 1 Width | 11.000 cm |
| Package 1 Length | 11.500 cm |
| Package 1 Weight | 245.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 4.016 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 240 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 74.256 kg |
