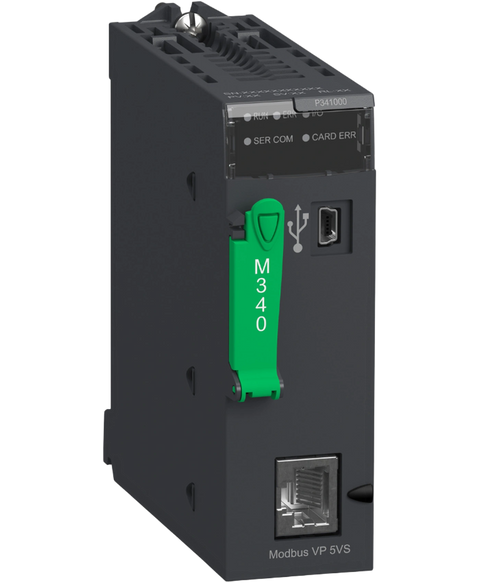

Schneider Electric BMXP341000
The BMXP341000 model from Schneider Electric's Modicon series is a versatile central processing unit module designed for various automation tasks. Capable of handling up to 512 discrete I,O points in a single rack setup, it can also accommodate 128 analog I,O points in a multi-rack arrangement.
This Schneider Electric BMXP341000 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Programmable logic controllers range and is referenced internally as PartLogic SKU PL26805635940.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$601.03
(inc. GST)
In Stock
| Range of product | Modicon M340 automation platform |
| Product or component type | Processor module |
| Concept | Modbus |
| Number of racks | 2 |
| Local I/O processor capacity (discrete) | 512 I/O |
| Analogue I/O processor capacity | 128 I/O |
| Number of application specific channel | 20 |
| Monitoring | Diagnostic counters Modbus | Event counters Modbus |
| Control channels | Programmable loops |
| Integrated connection type | Non isolated serial link RJ45 character mode, transmission mode: asynchronous in baseband, RS232C, transmission mode: 2 twisted shielded pairs at 0.3...19.2 kbit/s full duplex | Non isolated serial link RJ45 character mode, transmission mode: asynchronous in baseband, RS485, transmission mode: 1 twisted shielded pair at 0.3...19.2 kbit/s half duplex | Non isolated serial link RJ45, master/slave Modbus, RTU/ASCII, transmission mode: asynchronous in baseband, RS232C, transmission mode: 1 twisted shielded pair at 0.3...19.2 kbit/s half duplex | Non isolated serial link RJ45, master/slave Modbus, RTU/ASCII, transmission mode: asynchronous in baseband, RS485, transmission mode: 1 twisted shielded pair at 0.3...19.2 kbit/s half duplex | USB port at 12 Mbit/s |
| Communication module processor capacity | 2 Ethernet communication module | 2 AS-Interface module |
| Number of devices per segment | 0…32 (character mode) | 0…32 (Modbus) |
| Number of devices | 2 point-to-point character mode | 2 point-to-point Modbus |
| Bus length | 0…10 m serial link non isolated character mode segment | 0…10 m serial link non isolated Modbus segment | 0…1000 m serial link isolated character mode segment | 0…1000 m serial link isolated Modbus segment | 0…15 m character mode point-to-point | 0…15 m Modbus point-to-point |
| Maximum tap links length | <15 m serial link non isolated character mode segment | <15 m serial link non isolated Modbus segment | <40 m serial link isolated character mode segment | <40 m serial link isolated Modbus segment |
| Number of addresses | 0…248 for character mode | 0…248 for Modbus |
| Requests | 1 K data bytes per request character mode | 252 data bytes per RTU request Modbus | 504 data bytes per ASCII request Modbus |
| Control parameter | One CRC on each frame (RTU) Modbus | One LRC on each frame (ASCII) character mode | One LRC on each frame (ASCII) Modbus |
| Memory description | Internal RAM 2048 kB | Internal RAM 128 kB data | Internal RAM 1792 kB program constants and symbols | Supplied memory card (BMXRMS008MP) backup of programs, constants, symbols and data |
| Maximum size of object areas | 16250 %Mi located internal bits | 32464 %MWi internal words located internal data | 32760 %KWi constant words located internal data |
| Default size of object areas | 128 %KWi constant words located internal data | 256 %Mi located internal bits | 512 %MWi internal words located internal data |
| Application structure | 1 periodic fast task | 32 event tasks | 1 cyclic/periodic master task | No auxiliary task |
| Execution time per instruction | 0.18 µs Boolean | 0.26 µs double-length words | 0.38 µs single-length words | 1.74 µs floating points |
| Number of instructions per ms | 4.2 Kinst/ms 65 % Boolean + 35 % fixed arithmetic | 5.4 Kinst/ms 100 % Boolean |
| System overhead | 0.2 ms for fast task | 1.05 ms for master task |
| Current consumption | 72 mA at 24 V DC |
| Supply | Internal power supply via rack |
| Marking | CE | UL | CSA | RCM | EAC | UKCA | China RoHS | WEEE | IEC |
| Status LED | 1 LED (green) processor running (RUN) | 1 LED (red) I/O module fault (I/O) | 1 LED (red) memory card fault (CARD ERR) | 1 LED (red) processor or system fault (ERR) | 1 LED (yellow) activity on Modbus (SER COM) |
| Net weight | 0.2 kg |
| Ambient air temperature for operation | 0…60 °C |
| Relative humidity | 5…95 % without condensation |
| IP degree of protection | IP20 |
| Protective treatment | TC |
| Directives | 2014/35/EU - low voltage directive | 2014/30/EU - electromagnetic compatibility | 2012/19/EU - WEEE directive |
| Product certifications | CE | UL | CSA | RCM | EAC | UKCA | Merchant Navy | CCSAus HazLoc Class I Division 2 Group A | CCSAus HazLoc Class I Division 2 Group B | CCSAus HazLoc Class I Division 2 Group C | CCSAus HazLoc Class I Division 2 Group D |
| Standards | IEC 61131-2 | IEC 61010-2-201 | UL 61010-2-201 | CSA C22.2 No 61010-2-201 | IACS E10 | EN/IEC 61000-6-5, interface type 1 and type 2 | EN/IEC 61850-3, location G |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.500 cm |
| Package 1 Width | 11.000 cm |
| Package 1 Length | 12.000 cm |
| Package 1 Weight | 237.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 3.900 kg |
