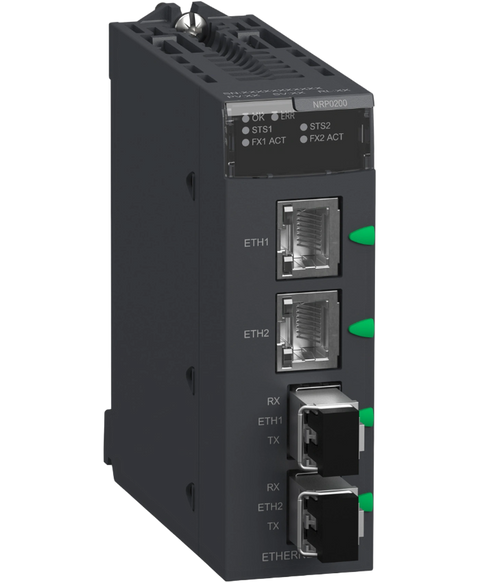

Schneider Electric BMXNRP0200
Fiber Converter MM,LC 2CH 100Mb
This Schneider Electric BMXNRP0200 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Communication modules > Fiber optic range and is referenced internally as PartLogic SKU PL26805523677.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon X80 |
| Product or component type | Fibre optic repeater |
| Optic fiber type | Multi mode |
| Rated voltage | 24 V |
| Current consumption | 140 mA typical | 200 mA maximum |
| Function available | Hot swap |
| Number of port | 2 RJ45 with 100BASE-TX port Ethernet conforming to IEEE 802.3u | 2 fiber optic with 100BASE-FX port Ethernet conforming to IEEE 802.3u |
| Local signalling | 1 LED (green) for power supply status | 1 LED (red) for error condition (ERR) | 2 LEDs (green) for link status | 2 LEDs (green) for fiber port state and activity |
| Wavelength | 1310 nm |
| operating distance | 0...2000 m |
| Attenuation | -23.5…-14 dB (50/125 µm) | -20…-14 dB (62.5/125 µm) |
| Rise/fall time | 3 ns |
| Receiver sensitivity | - 31...- 14 dBm |
| Marking | CE |
| Width | 32 mm |
| Height | 100 mm |
| Depth | 86 mm |
| Net weight | 203 g |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -40…70 °C |
| Relative humidity | 0…95 % |
| Directives | 2014/35/EU - low voltage directive | 2014/30/EU - electromagnetic compatibility |
| Product certifications | CE | RCM | CSA | EAC | Merchant Navy | UL |
| Standards | IEC 61010-2-201 | IEC 61131-2 | UL 61010-2-201 | CSA C22.2 No 61010-2-201 |
| Dielectric strength | 1400 V DC between field and bus | 500 V DC between channels |
| IP degree of protection | IP20 |
| Operating altitude | 0...4000 m |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.800 cm |
| Package 1 Width | 11.200 cm |
| Package 1 Length | 13.000 cm |
| Package 1 Weight | 249.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 14 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 3.789 kg |
