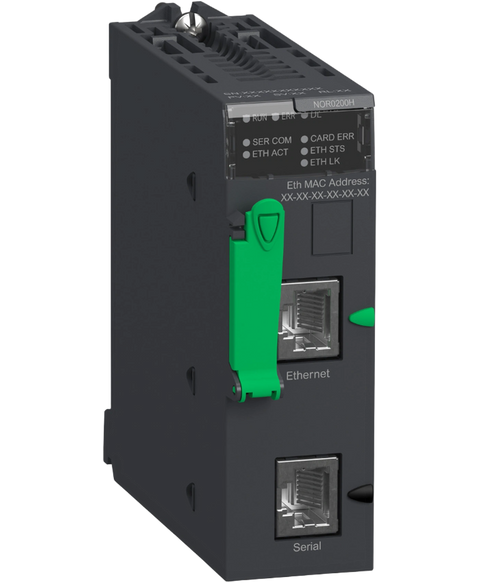

Schneider Electric BMXNOR0200H
The BMXNOR0200H is a Serial RTU module from Schneider Electric’s Communications series designed for seamless integration with Modicon M340 systems. It features two ports for RS-485,232 connections and supports Modbus and character mode protocols, accommodating a variety of communication needs.
This Schneider Electric BMXNOR0200H is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Communication modules > Fiber optic range and is referenced internally as PartLogic SKU PL26805547665.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon M340 |
| Product or component type | Communication module |
| Integrated connection type | Ethernet RJ45 10/100 Mbit/s 1 twisted pair transparent ready class C30 | Serial RS232/485 RJ45 300/38400 bit/s 1 twisted pair transparent ready class C30 |
| Protective treatment | Conformal coating |
| Communication service | Bandwidth management | Modbus TCP messaging | DNP3/DNP3 IP protocol | IEC 60870-5 -101/-104 protocol | Time stamped events management | External modem management (serial, PSTN, GSM, GPRS/3G) | Data logging in CSV files | Email/SMS notifications | Web server, rack viewer, data editor | BootP, DHCP, FDR client | SMTP server, FTP client/server, NTP client, SNMP agent, | Automatic events backup on power loss | Multi-protocols support in a single module (master and slave) | Transparent events routing from remote slaves to SCADA |
| Port Ethernet | 10BASE-T/100BASE-TX |
| Memory description | Supplied Flash SD memory card (BMXRWS128MWF) 128000 kB |
| Memory usage | Activating the standard web server | User web pages storage | Data logging CSV files storage |
| Supply | Internal power supply via rack |
| Local signalling | 1 LED (green) for activity on Ethernet network (ETH ACT) | 1 LED (green) for processor running (RUN) | 1 LED (green) for status of Ethernet network (ETH STS) | 1 LED (red) for memory card fault (CARD ERR) | 1 LED (red) for processor or system fault (ERR) | 1 LED (red) for download in progress (DL) | 1 LED (yellow) for serial communication (SER COM) | 1 LED (green) for data rate (ETH LINK) |
| Current consumption | 95 mA at 24 V DC |
| Module format | Standard |
| Net weight | 0.2 kg |
| Ambient air temperature for operation | -25…70 °C |
| Relative humidity | 10…95 % without condensation |
| IP degree of protection | IP20 |
| Directives | 2014/35/EU - low voltage directive | 2014/30/EU - electromagnetic compatibility | 2014/34/EU - ATEX directive |
| Product certifications | CE | UL | CSA | RCM | EAC | Merchant Navy | ATEX zone 2/22 | IECEx zone 2/22 | UKCA |
| Standards | IEC 61131-2 | IEC 61010-2-201 | UL 61010-2-201 | CSA C22.2 No 61010-2-201 | IACS E10 | IEC 61000-6-5, interface type 1 and type 2 | IEC 61850-3, location G | IEC 60079-0 |
| Environmental characteristic | Gas resistant class Gx conforming to ISA S71.04 | Gas resistant class 3C4 conforming to IEC 60721-3-3 | Dust resistant class 3S4 conforming to IEC 60721-3-3 | Sand resistant class 3S4 conforming to IEC 60721-3-3 | Salt resistant level 2 conforming to IEC 68252 | Mold growth resistant class 3B2 conforming to IEC 60721-3-3 | Fungal spore resistant class 3B2 conforming to IEC 60721-3-3 | Hazardous location class I division 2 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.500 cm |
| Package 1 Width | 11.500 cm |
| Package 1 Length | 12.000 cm |
| Package 1 Weight | 253.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 4.100 kg |
