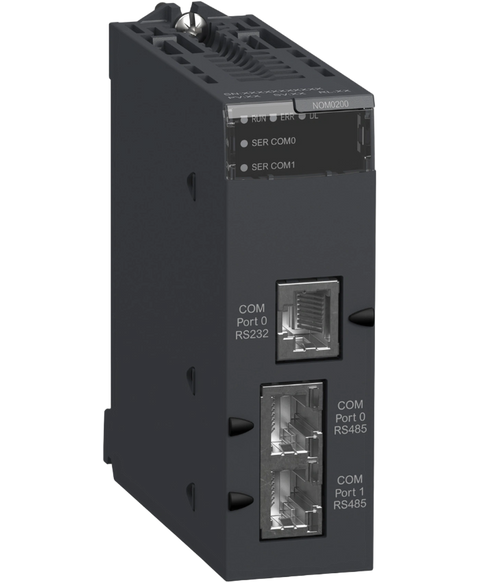

Schneider Electric BMXNOM0200
Serial link module with 2 RS-485,232 ports in Modbus and Character mode
This Schneider Electric BMXNOM0200 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Communication modules > Modbus range and is referenced internally as PartLogic SKU PL26801446588.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon X80 |
| Product or component type | Serial links module |
| Concept | Serial link |
| Integrated connection type | RS232 RJ45 115.2 kbit/s 8 wires | RS485 RJ45 57.6 kbit/s 1 twisted pair |
| Protective treatment | TC |
| Supply | Internal power supply via rack |
| Marking | CE |
| Local signalling | 1 LED (red) for module fault (ERR) | 1 LED (green) for module running (RUN) | 1 LED (green) for activity on the serial link (SER COM 0) | 1 LED (green) for activity on the serial link (SER COM 1) |
| Current consumption | 80 mA at 24 V DC |
| Module format | Standard |
| Net weight | 0.23 kg |
| Ambient air temperature for operation | 0…60 °C |
| Relative humidity | 10…95 % without condensation |
| IP degree of protection | IP20 |
| Directives | 2014/35/EU - low voltage directive | 2014/30/EU - electromagnetic compatibility |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.300 cm |
| Package 1 Width | 11.700 cm |
| Package 1 Length | 12.000 cm |
| Package 1 Weight | 217.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 3.600 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 240 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 65.940 kg |
