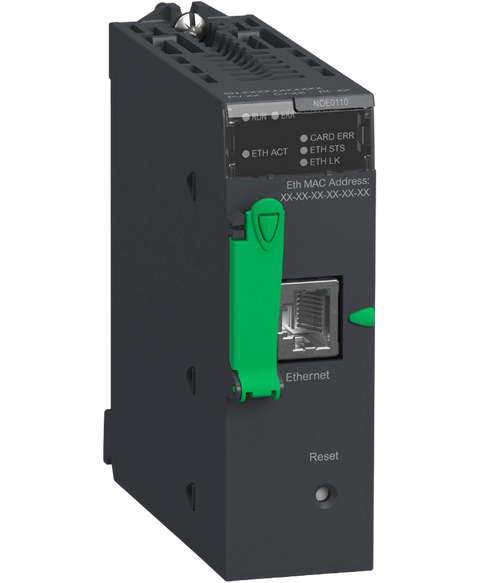

Schneider Electric BMXNOE0110
The BMXNOE0110 from Schneider Electric represents a network module designed for integration in Modicon environments. Equipped with Ethernet TCP,IP capabilities, it provides an efficient means of communication with a data rate of 10,100 Mbit,s.
This Schneider Electric BMXNOE0110 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Communication modules > Ethernet range and is referenced internally as PartLogic SKU PL26805526356.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon M340 automation platform |
| Product or component type | Ethernet TCP/IP network module |
| Concept | Transparent Ready |
| Integrated connection type | Ethernet TCP/IP RJ45 10/100 Mbit/s 1 twisted pair transparent ready class C30 |
| Protective treatment | TC |
| Communication service | Bandwidth management | FDR server | Rack Viewer | SNMP network administrator | Global Data | I/O scanning | Modbus TCP messaging | Web server configurable | Data Editor (via PC, pocket PC or PDA terminal) | SOAP XML Web service (server) |
| Port Ethernet | 10BASE-T/100BASE-TX |
| Memory description | Supplied Flash memory card (BMXRWSC016M) | Internal RAM 16000 kB |
| Memory usage | User web page size: internal RAM | Activating the standard web server: supplied Flash memory card (BMXRWSC016M) | Application saving: supplied Flash memory card (BMXRWSC016M) |
| Supply | Internal power supply via rack |
| Marking | CE |
| Local signalling | 1 LED (green) for activity on Ethernet network (ETH ACT) | 1 LED (green) for processor running (RUN) | 1 LED (green) for status of Ethernet network (ETH STS) | 1 LED (red) for data rate (ETH 100) | 1 LED (red) for memory card fault (CARD ERR) | 1 LED (red) for processor or system fault (ERR) |
| Control type | RESET push-button cold restart |
| Current consumption | 90 mA at 24 V DC |
| Module format | Standard |
| Net weight | 0.2 kg |
| Ambient air temperature for operation | 0…60 °C |
| Relative humidity | 10…95 % without condensation |
| IP degree of protection | IP20 |
| Directives | 2014/35/EU - low voltage directive | 2014/30/EU - electromagnetic compatibility |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.600 cm |
| Package 1 Width | 11.500 cm |
| Package 1 Length | 12.000 cm |
| Package 1 Weight | 238.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 3.951 kg |
