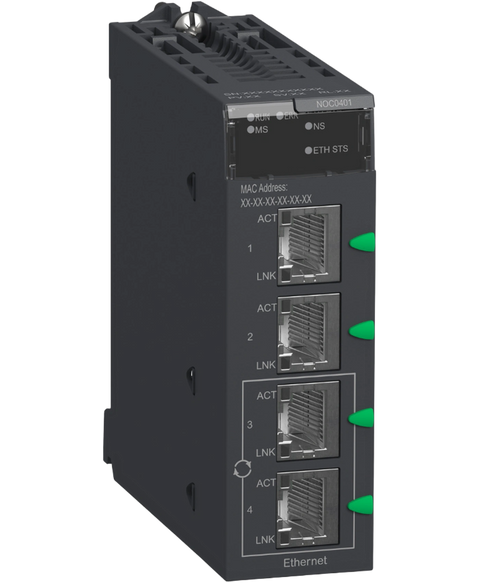

Schneider Electric BMXNOC0401
Ethernet module M340 - 4 x RJ45 10,100
This Schneider Electric BMXNOC0401 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Communication modules > Ethernet range and is referenced internally as PartLogic SKU PL26805620964.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon M340 automation platform |
| Product or component type | Ethernet TCP/IP network module |
| Concept | Transparent Ready |
| Integrated connection type | Ethernet RJ45 10/100 Mbit/s 4 twisted pairs transparent ready class B30 |
| Protective treatment | TC |
| Communication service | Bandwidth management | Data Editor (via PC terminal) | FDR server | Rack Viewer | SNMP network administrator | Modbus TCP I/O Scanner and Messaging | Ethernet/IP I/O Scanner and Messaging | Embedded 4-port switch | RSTP support | Port mirroring |
| Port Ethernet | 10BASE-T/100BASE-TX |
| Memory usage | Application saving | Activating the standard web server |
| Supply | Internal power supply via rack |
| Marking | CE |
| Local signalling | 1 LED (green) for processor running (RUN) | 1 LED (red) for processor or system fault (ERR) | 1 LED (amber) for status of Ethernet network (ETH STS) | 1 LED (green/red) for MS (Module Status) | 1 LED (green/red) for NS (Network Status) |
| Control type | Processor or system fault (ERR) |
| Current consumption | 555 mA at 3.3 V DC |
| Module format | Standard |
| Net weight | 0.2 kg |
| Ambient air temperature for operation | 0…60 °C |
| Relative humidity | 10…95 % without condensation |
| IP degree of protection | IP20 |
| Directives | 2014/35/EU - low voltage directive | 2014/30/EU - electromagnetic compatibility | 2014/34/EU - ATEX directive |
| Product certifications | CE | UL | CSA | RCM | EAC | Merchant Navy | ATEX zone 2/22 | IECEx zone 2/22 |
| Standards | IEC 61131-2 | IEC 61010-2-201 | UL 61010-2-201 | CSA C22.2 No 61010-2-201 | IACS E10 | IEC 61000-6-5, interface type 1 and type 2 | IEC 61850-3, location G | IEC 60079-0 |
| Environmental characteristic | Hazardous location class I division 2 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.500 cm |
| Package 1 Width | 11.000 cm |
| Package 1 Length | 12.000 cm |
| Package 1 Weight | 220.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 3.656 kg |
