Schneider Electric BMXFCW503

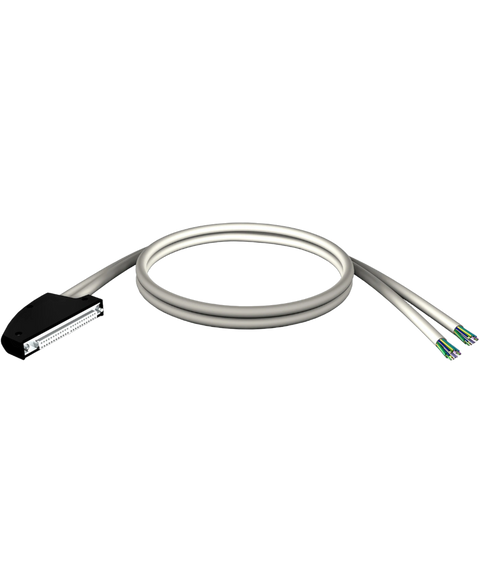

The BMXFCW503 cord set from Schneider Electric is part of the Modicon M340 series, designed for reliable connections in automation systems. It features a 40-way terminal connector and is constructed with a PVC jacket for durability under various conditions.
This Schneider Electric BMXFCW503 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Cabling range and is referenced internally as PartLogic SKU PL26902738487.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon X80 |
| Accessory / separate part type | Preformed cordset |
| Accessory / separate part designation | Preformed cordset with one end with flying leads |
| Accessory / separate part destination | For I/O module with 40-way connectors |
| Number of cables | 2 |
| Electrical connection | 1 connector 40 ways | 2 ends with color-coded flying leads conforming to DIN 47100 |
| Cable length | 5 m |
| Total number of wires | 40 |
| Wire section | 0.324 mm² |
| AWG gauge | AWG 22 |
| Relative impedance | 10 MOhm for <= 50 V | 100 MOhm for 50...250 V |
| Net weight | 1.49 kg |
| Standards | CSA C22.2 No 142 | EN/IEC 61131-2 | UL 508 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.000 cm |
| Package 1 Width | 26.000 cm |
| Package 1 Length | 30.000 cm |
| Package 1 Weight | 1.441 kg |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 4 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 6.000 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 192 |
| Package 3 Height | 103.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 298.232 kg |
