Schneider Electric BMXDDM3202K

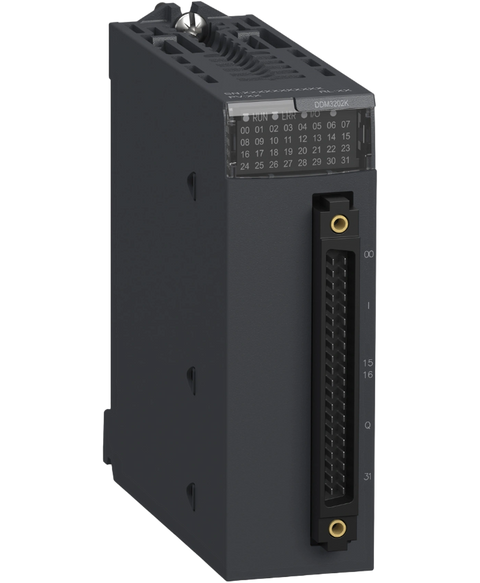

The BMXDDM3202K from Schneider Electric is an I,O module within the Modicon X80 series designed for discrete input and output applications. It features 16 discrete inputs with a current sink type, operating at 24 VDC with a typical input current of 2.5 mA.
This Schneider Electric BMXDDM3202K is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Mixed io range and is referenced internally as PartLogic SKU PL26805620885.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon X80 |
| Product or component type | Discrete I/O module |
| Discrete input number | 16 |
| Input type | Current sink (logic positive) |
| Discrete input voltage | 24 V DC, discrete input logic: positive |
| Discrete input current | 2.5 mA |
| Discrete output number | 16 |
| Discrete output type | Solid state |
| Discrete output voltage | 24 V 19...30 V DC |
| Discrete output current | 0.1 A |
| Input compatibility | With 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2 | With 2-wire/3-wire proximity sensors conforming to IEC 61131-2 Type 1 |
| Sensor power supply | 19...30 V |
| Current state 1 guaranteed | >= 2 mA |
| Current state 0 guaranteed | <= 0.5 mA |
| Current per channel | 0.125 A |
| Maximum current per module | 3.2 A |
| Maximum leakage current | 0.1 mA at state 0 |
| Maximum voltage drop | <1.5 V at state 1 |
| Input impedance | 9600 Ohm |
| Insulation resistance | > 10 MOhm 500 V DC |
| Power dissipation in W | 4 W |
| DC typical response time | 4 ms |
| DC maximum response time | 7 ms |
| Response time on output | 1.2 ms |
| Paralleling of outputs | Yes : 3 maximum |
| Typical current consumption | 69 mA at 24 V DC | 125 mA at 3.3 V DC |
| Current consumption | <= 104 mA at 24 V DC | <= 166 mA at 3.3 V DC |
| MTBF reliability | 430000 H |
| Protection type | 1 external fuse per group of input channel0.5 A fast blow | overvoltage protection on output | reverse polarity protection on input | reverse polarity protection on output |
| Output overload protection | With electronic circuit breaker 0.125 A < Id < 0.185 A | With current limiter |
| Output overvoltage protection | With transil diode |
| Output short-circuit protection | With 2 A external fuse |
| Reverse polarity protection | Reverse mounted diode |
| Voltage detection threshold | < 14 V DC preactuator fault | < 14 V DC sensor fault | > 18 V DC preactuator OK | > 18 V DC sensor OK |
| Maximum tungsten load | 1.2 W |
| Switching frequency | 0.5/LI² Hz |
| Maximum overload time | 15 ms |
| Load impedance ohmic | <= 220 Ohm |
| Status LED | 1 LED (green) module operating (RUN) | 1 LED per channel (green) channel diagnostic | 1 LED (red) module error (ERR) | 1 LED (red) module I/O |
| Net weight | 0.11 kg |
| IP degree of protection | IP20 |
| Directives | 2014/35/EU - low voltage directive | 2014/30/EU - electromagnetic compatibility |
| Dielectric strength | 1500 V AC at 50/60 Hz 1 minute, output/ground | 1500 V AC at 50/60 Hz 1 minute, output/internal logic | 1500 V AC at 50/60 Hz 1 minute, primary/secondary | 500 V DC 1 minute, between group of inputs and outputs |
| Vibration resistance | 3 gn |
| Shock resistance | 30 gn |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | 0…60 °C |
| Relative humidity | 5…95 % at 55 °C without condensation |
| Protective treatment | Standard version |
| Operating altitude | 0...2000 m | 2000...5000 m with derating factor |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.500 cm |
| Package 1 Width | 11.500 cm |
| Package 1 Length | 11.700 cm |
| Package 1 Weight | 136.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 2.355 kg |
