Schneider Electric BMXDDI6402K

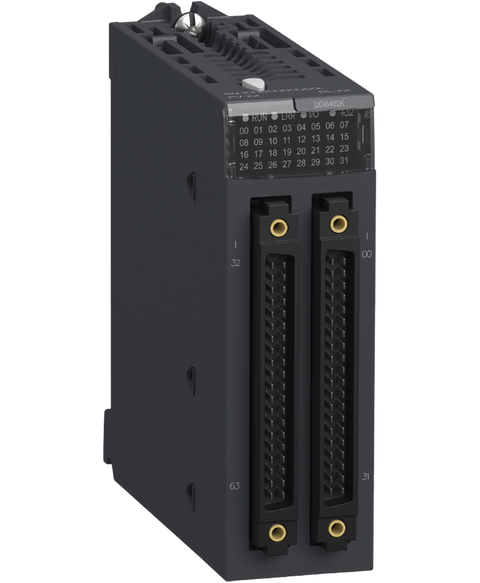

The BMXDDI6402K module from Schneider Electric is a digital input module tailored for the Modicon X80 series. This unit incorporates 64 electrically isolated input channels designed to operate on a 24 V DC voltage supply, making it suitable for various industrial applications.
This Schneider Electric BMXDDI6402K is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Digital input range and is referenced internally as PartLogic SKU PL26805597591.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon X80 |
| Product or component type | Discrete input module |
| Discrete input number | 64 |
| Discrete input type | Isolated |
| Input type | Current sink (logic positive) |
| Discrete input voltage | 24 V DC |
| Discrete input current | 0.6 mA |
| Sensor power supply | 19...30 V |
| Input impedance | 40000 Ohm |
| Insulation resistance | > 10 MOhm 500 V DC |
| Power dissipation in W | 4.3 W |
| DC typical response time | 4 ms |
| DC maximum response time | 7 ms |
| Paralleling of inputs | No |
| Typical current consumption | 160 mA at 3.3 V DC |
| MTBF reliability | 510000 H |
| Protection type | 1 external fuse per group of channel0.5 A fast blow | without reverse polarity protection |
| Voltage detection threshold | < 14 V DC sensor fault | > 18 V DC sensor OK |
| Status LED | 1 LED (green) +32 channels indicator | 1 LED (green) module operating (RUN) | 1 LED per channel (green) channel diagnostic | 1 LED (red) module error (ERR) | 1 LED (red) module I/O |
| Net weight | 0.145 kg |
| IP degree of protection | IP20 |
| Directives | 2014/35/EU - low voltage directive | 2014/30/EU - electromagnetic compatibility |
| Dielectric strength | 1500 V AC at 50/60 Hz 1 minute, primary/secondary | 500 V DC 1 minute, between group of channels |
| Vibration resistance | 3 gn |
| Shock resistance | 30 gn |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | 0…60 °C |
| Relative humidity | 5…95 % at 55 °C without condensation |
| Protective treatment | Standard version |
| Operating altitude | 0...2000 m | 2000...5000 m with derating factor |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.700 cm |
| Package 1 Width | 11.200 cm |
| Package 1 Length | 11.800 cm |
| Package 1 Weight | 180.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 3.481 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 240 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 66.000 kg |
