Schneider Electric BMXDDI3202K

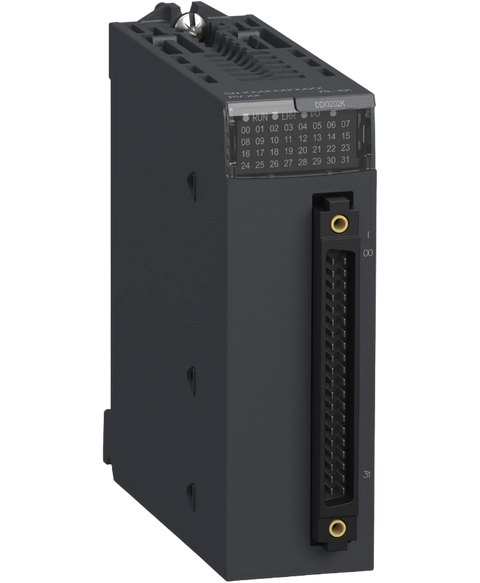

The BMXDDI3202K from Schneider Electric is a discrete input module designed for precise input management. This device features 32 isolated inputs and operates under a sensor supply voltage range of 19 to 30 volts DC, ensuring compatibility with various sensor types.
This Schneider Electric BMXDDI3202K is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Digital input range and is referenced internally as PartLogic SKU PL26805621382.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon X80 |
| Product or component type | Discrete input module |
| Discrete input number | 32 |
| Discrete input type | Isolated |
| Input type | Current sink (logic positive) |
| Discrete input voltage | 24 V DC |
| Discrete input current | 2.5 mA |
| Input compatibility | With 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2 | With 2-wire/3-wire proximity sensors conforming to IEC 61131-2 Type 1 |
| Sensor power supply | 19...30 V |
| Current state 1 guaranteed | >= 2 mA |
| Current state 0 guaranteed | <= 0.5 mA |
| Input impedance | 9600 Ohm |
| Insulation resistance | > 10 MOhm 500 V DC |
| Power dissipation in W | 3.9 W |
| DC typical response time | 4 ms |
| DC maximum response time | 7 ms |
| Paralleling of inputs | No |
| Typical current consumption | 121 mA at 3.3 V DC |
| MTBF reliability | 905000 H |
| Protection type | 1 external fuse per group of channel0.5 A fast blow | reverse polarity protection |
| Voltage detection threshold | < 14 V DC sensor fault | > 18 V DC sensor OK |
| Status LED | 1 LED (green) module operating (RUN) | 1 LED per channel (green) channel diagnostic | 1 LED (red) module error (ERR) | 1 LED (red) module I/O |
| Net weight | 0.112 kg |
| IP degree of protection | IP20 |
| Directives | 2014/35/EU - low voltage directive | 2014/30/EU - electromagnetic compatibility |
| Dielectric strength | 1500 V AC at 50/60 Hz 1 minute, primary/secondary | 500 V DC 1 minute, between group of channels |
| Vibration resistance | 3 gn |
| Shock resistance | 30 gn |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | 0…60 °C |
| Relative humidity | 5…95 % at 55 °C without condensation |
| Protective treatment | Standard version |
| Operating altitude | 0...2000 m | 2000...5000 m with derating factor |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.200 cm |
| Package 1 Width | 11.000 cm |
| Package 1 Length | 11.500 cm |
| Package 1 Weight | 143.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 2.486 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 240 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 49.776 kg |
