Schneider Electric BMXCRA31210

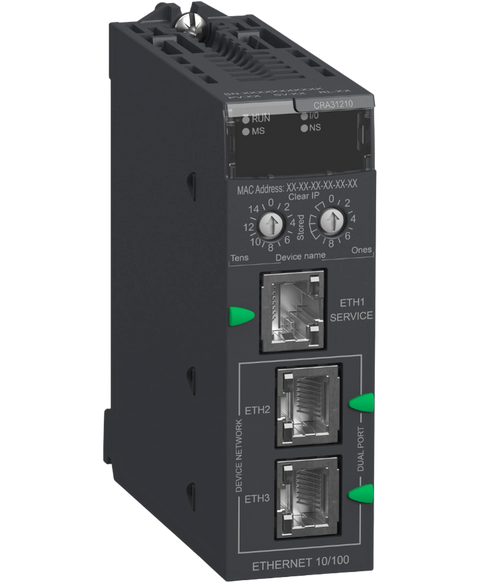

The BMXCRA31210 model serves as a RIO Drop Adaptor designed for use with Schneider Electric's Modicon X80 series. This device features three Ethernet,IP communication ports with RJ45 connectors, operating over an IPv4 network type, ensuring efficient connectivity in various applications.
This Schneider Electric BMXCRA31210 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Communication modules > Remote io range and is referenced internally as PartLogic SKU PL26805532741.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon X80 |
| Range compatibility | Modicon M580 | Modicon Quantum |
| Product or component type | I/O expansion module |
| Device application | X80 Ethernet RIO drop adaptor |
| Product specific application | For remote I/O modules |
| Bus type | Bus X across the remote backplane |
| Number of port | 3 |
| Integrated connection type | 1 port for service or distributed equipment | 2 port for Ethernet RIO Network (RSTP) |
| Communication network type | IPv4 (internet protocol) |
| Communication port protocol | EtherNet/IP |
| Communication service | Ethernet/IP adapter | RSTP (Ring topology support) | Ethernet RIO network | Quality of Service (QoS) | CIP Explicit messaging (server) | Modbus TCP server for module diagnostics | DHCP client | TFTP client | FTP client | FDR client | SNTP client | SNMP agent |
| Cybersecurity | Enable/disable communication ports | Syslog protocol support |
| Connector type | 3 RJ45 |
| Exchange mode | Half duplex, full duplex, autonegotiation, auto MDIX |
| Transmission rate | 10/100 Mbit/s |
| Port Ethernet | 10/100BASE-TX |
| Function available | CCOTF (configuration change on the fly) | Input data is collected and published to the remote I/O head adaptor | Output modules are updated with the data received from remote I/O head adaptor | Diagnostics for remote I/O devices (Device DDT) | Port mirroring | System time stamping | Non-interfering type 1 | I/O extension rack |
| Data recording | 10 ms time stamps |
| Topology | Ring |
| Local signalling | 1 LED (green) for module active (RUN) | 1 LED (red) for module error (ERR) | 1 LED (green/red) for module status (Mod Status) | 1 LED (green/red) for network communication status (Net Status) | 1 LED (green) for Ethernet link diagnostics (STS) |
| Current consumption | 1200 mA |
| Input voltage | 3.3 V DC |
| Product compatibility | 0…1024 discrete channel | 0…256 analog channel | counter module | time-stamping module | SSI encoder interface module | motion control module | frequency input module | AS-Interface module | serial link module | fiber converter modules |
| Module format | Standard |
| Net weight | 0.225 kg |
| Maximum altitude transport | 3000 m |
| Relative humidity | 95 % without condensation |
| fixing mode | By screws |
| Mounting mode | Rack-mounted |
| Width | 32 mm |
| Height | 100 mm |
| Depth | 87.5 mm |
| Directives | 2014/35/EU - low voltage directive | 2014/30/EU - electromagnetic compatibility |
| Product certifications | CE | UL | CSA | RCM | EAC | Merchant Navy |
| Standards | IEC 61131-2 | IEC 61010-2-201 | UL 61010-2-201 | CSA C22.2 No 61010-2-201 | IACS E10 | IEC 61000-6-5, interface type 1 and type 2 | IEC 61850-3, location G |
| Environmental characteristic | Standard environment |
| IP degree of protection | IP20 |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -40…85 °C |
| Operating altitude | <= 2000 m |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.500 cm |
| Package 1 Width | 11.000 cm |
| Package 1 Length | 11.800 cm |
| Package 1 Weight | 260.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 4.200 kg |
