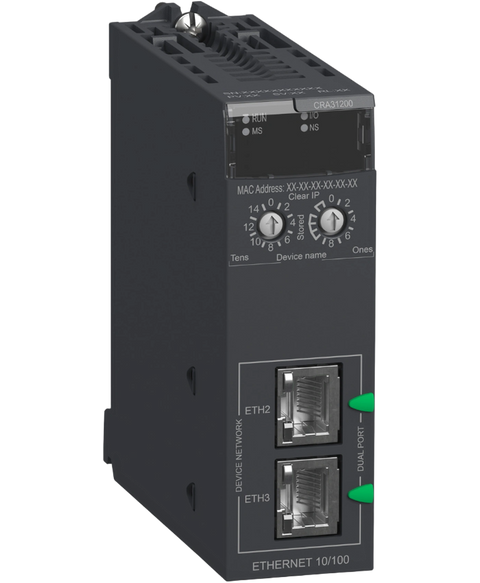

Schneider Electric BMXCRA31200
Modicon X80 RIO Drop E,IP STD
This Schneider Electric BMXCRA31200 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Communication modules > Remote io range and is referenced internally as PartLogic SKU PL26897182630.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon X80 |
| Range compatibility | Modicon M580 | Modicon Quantum |
| Product or component type | I/O expansion module |
| Device application | X80 Ethernet RIO drop adaptor |
| Product specific application | For remote I/O modules |
| Bus type | Bus X across the remote backplane |
| Number of port | 2 |
| Integrated connection type | 2 port for Ethernet RIO Network (RSTP) |
| Communication network type | IPv4 (internet protocol) |
| Communication port protocol | EtherNet/IP |
| Communication service | Ethernet/IP adapter | RSTP (Ring topology support) | Ethernet RIO network | Quality of Service (QoS) | CIP Explicit messaging (server) | Modbus TCP server for module diagnostics | DHCP client | TFTP client | FTP client | FDR client | SNTP client | SNMP agent |
| Cybersecurity | Syslog protocol support |
| Connector type | 2 RJ45 |
| Exchange mode | Half duplex, full duplex, autonegotiation, auto MDIX |
| Transmission rate | 10/100 Mbit/s |
| Port Ethernet | 10/100BASE-TX |
| Function available | CCOTF (configuration change on the fly) | Input data is collected and published to the remote I/O head adaptor | Output modules are updated with the data received from remote I/O head adaptor | Diagnostics for remote I/O devices (Device DDT) | I/O extension rack |
| Data recording | 10 ms time stamps |
| Topology | Ring |
| Local signalling | 1 LED (green) for module active (RUN) | 1 LED (red) for module error (ERR) | 1 LED (green/red) for module status (Mod Status) | 1 LED (green/red) for network communication status (Net Status) | 1 LED (green) for Ethernet link diagnostics (STS) |
| Current consumption | 1200 mA |
| Input voltage | 3.3 V DC |
| Product compatibility | 0…128 discrete channel | 0…16 analog channel |
| Module format | Standard |
| Net weight | 0.225 kg |
| Maximum altitude transport | 3000 m |
| Relative humidity | 95 % without condensation |
| fixing mode | By screws |
| Mounting mode | Rack-mounted |
| Width | 32 mm |
| Height | 100 mm |
| Depth | 87.5 mm |
| Directives | 2014/35/EU - low voltage directive | 2014/30/EU - electromagnetic compatibility |
| Product certifications | CE | UL | CSA | RCM | EAC | Merchant Navy |
| Standards | IEC 61131-2 | IEC 61010-2-201 | UL 61010-2-201 | CSA C22.2 No 61010-2-201 | IACS E10 | IEC 61000-6-5, interface type 1 and type 2 | IEC 61850-3, location G |
| Environmental characteristic | Standard environment |
| IP degree of protection | IP20 |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -40…85 °C |
| Operating altitude | <= 2000 m |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.800 cm |
| Package 1 Width | 11.200 cm |
| Package 1 Length | 12.200 cm |
| Package 1 Weight | 229.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 3.805 kg |
