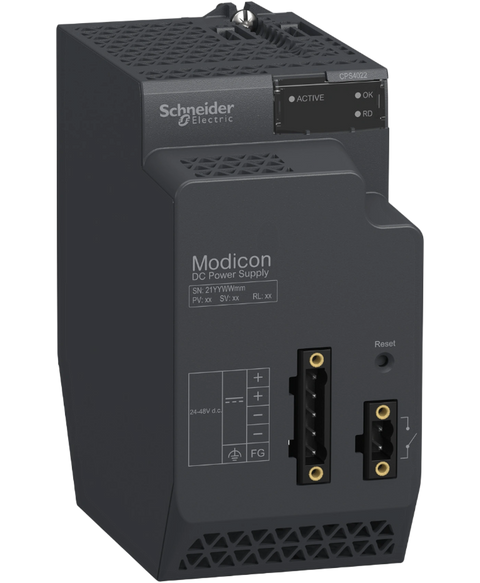

Schneider Electric BMXCPS4022
redundant power supply module X80 - 24..48 V DC
This Schneider Electric BMXCPS4022 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Power supplies range and is referenced internally as PartLogic SKU PL26895799885.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon X80 |
| Product or component type | Power supply module |
| backplane compatibility | All backplane |
| advanced diagnostics available via network | Redundancy information | Redundancy test | Temperature sensing | Remaining lifetime | Uptime duration |
| Primary voltage | 24...48 V |
| Supply circuit type | DC |
| Secondary power | 18 W 3.3 V DC at 0…60 °C I/O module logic power supply | 40 W 24 V DC at 0…60 °C I/O module power supply and processor if 3.3 V not loaded |
| Primary voltage limit | 18...62.4 V |
| Input current | 1.9 A 24 V | 1 A 48 V |
| Inrush current | 60 A 48 V | 60 A 24 V |
| I²t on activation | 0.4 A².s 24 V | 1.9 A².s 48 V |
| It on activation | 0.05 A.s 24 V | 0.08 A.s 48 V |
| MTBF reliability | 752000 H |
| Protection type | Internal fuse not accessible for primary circuit | Overload protection for secondary circuit | Overvoltage protection for secondary circuit | Short-circuit protection for secondary circuit |
| Current at secondary voltage | 5.5 A 3.3 V DC I/O module logic power supply | 1.67 A 24 V DC I/O module power supply and processor |
| Maximum power dissipation in W | 8.5 W |
| Status LED | 1 LED (green) presence of voltages (OK) | 1 LED (green) redundancy OK | 1 LED (green) power supply status |
| Control type | RESET push-button cold restart |
| Electrical connection | 1 connector 2 pin(s)alarm relay | 1 connector 5 pin(s)line supply, protective earth |
| Maximum cable distance between devices | 10 m | 15 m |
| Insulation resistance | >= 100 MOhm primary/ground | >= 100 MOhm primary/secondary |
| Net weight | 0.81 kg |
| Immunity to microbreaks | 1 ms |
| Dielectric strength | 1500 V primary/ground | 1500 V primary/secondary |
| IP degree of protection | IP20 |
| Directives | 2014/35/EU - low voltage directive | 2014/30/EU - electromagnetic compatibility |
| Environmental characteristic | 3C3 conforming to IEC 60721-3-3 | 3C4 conforming to IEC 60721-3-3 |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | 0…60 °C |
| Relative humidity | 10…95 % without condensation |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 9.500 cm |
| Package 1 Width | 18.000 cm |
| Package 1 Length | 25.500 cm |
| Package 1 Weight | 666.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 4.680 kg |
