Schneider Electric BMXCPS4002

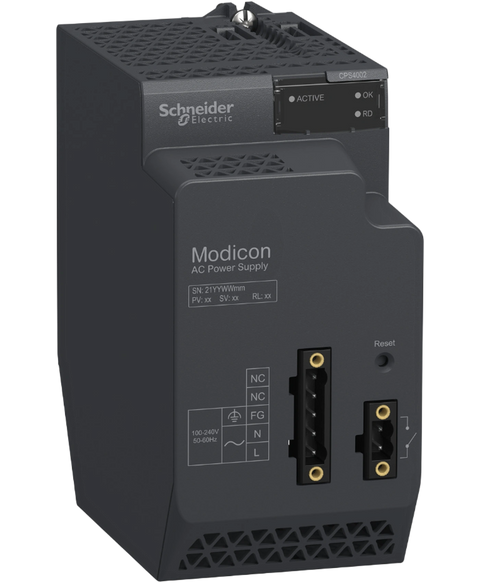

The BMXCPS4002 is a power supply module found in Schneider Electric's Modicon X80 series. This device operates on an AC voltage range from 100 to 240 volts, and it meets the power requirements for various applications with a secondary output of 40 watts.
This Schneider Electric BMXCPS4002 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Power supplies range and is referenced internally as PartLogic SKU PL26805605862.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon X80 |
| Product or component type | Power supply module |
| backplane compatibility | All backplane |
| advanced diagnostics available via network | Temperature sensing | Redundancy test | Uptime duration | Redundancy information | Remaining lifetime |
| Primary voltage | 100...240 V |
| Supply circuit type | AC |
| Secondary power | 18 W 3.3 V DC at 0…60 °C I/O module logic power supply | 40 W 24 V DC at 0…60 °C I/O module power supply and processor if 3.3 V not loaded |
| Primary voltage limit | 85...264 V |
| Network frequency | 50/60 Hz |
| Network frequency limits | 47…63 Hz |
| Apparent power | 0.13 kVA |
| Input current | 0.55 A 240 V | 1.01 A 115 V |
| Inrush current | 30 A 120 V | 60 A 240 V |
| I²t on activation | 1 A².s 115 V | 4 A².s 230 V |
| It on activation | 0.1 A.s 115 V | 0.15 A.s 230 V |
| MTBF reliability | 792000 H |
| Protection type | Internal fuse not accessible for primary circuit | Overload protection for secondary circuit | Overvoltage protection for secondary circuit | Short-circuit protection for secondary circuit |
| Current at secondary voltage | 5.5 A 3.3 V DC I/O module logic power supply | 1.67 A 24 V DC I/O module power supply and processor |
| Maximum power dissipation in W | 8.5 W |
| Status LED | 1 LED (green) presence of voltages (OK) | 1 LED (green) redundancy OK | 1 LED (green) power supply status |
| Control type | RESET push-button cold restart |
| Electrical connection | 1 connector 2 pin(s)alarm relay | 1 connector 5 pin(s)line supply, protective earth |
| Insulation resistance | >= 100 MOhm primary/ground | >= 100 MOhm primary/secondary |
| Net weight | 0.51 kg |
| Immunity to microbreaks | 1 ms |
| Dielectric strength | 1500 V primary/secondary I/O module logic power supply | 1500 V primary/secondary I/O module power supply and processor | 2300 V primary/secondary sensor power supply | 1500 V primary/ground | 500 V 24 V sensor output/ground |
| Vibration resistance | 3 gn |
| Shock resistance | 30 gn |
| IP degree of protection | IP20 |
| Directives | 2014/35/EU - low voltage directive | 2014/30/EU - electromagnetic compatibility |
| Environmental characteristic | 3C3 conforming to IEC 60721-3-3 | 3C4 conforming to IEC 60721-3-3 |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | 0…60 °C |
| Relative humidity | 5…95 % at 55 °C without condensation |
| Protective treatment | TC | Conformal coating Humiseal 1A33 |
| Operating altitude | 0...2000 m | 2000...5000 m with derating factor |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 9.800 cm |
| Package 1 Width | 18.300 cm |
| Package 1 Length | 25.300 cm |
| Package 1 Weight | 614.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 4.420 kg |
