Schneider Electric BMXCPS3020

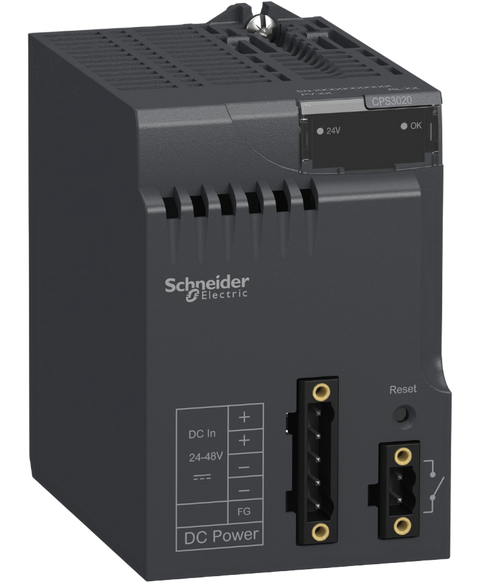

The BMXCPS3020 from Schneider Electric is a power supply module essential for the Modicon X80 series. It accepts an input voltage range of 24 to 48V DC and provides stable outputs suitable for various device requirements.
This Schneider Electric BMXCPS3020 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Power supplies range and is referenced internally as PartLogic SKU PL26805621427.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon X80 |
| Product or component type | Power supply module |
| backplane compatibility | Not compatible with BMEXBP..02 |
| Primary voltage | 24...48 V isolated |
| Supply circuit type | DC |
| Secondary power | 15 W 3.3 V DC I/O module logic power supply | 31.2 W 24 V DC I/O module power supply and processor |
| Primary voltage limit | 18...62.4 V |
| Input current | 0.83 A 48 V | 1.65 A 24 V |
| Inrush current | 30 A 24 V | 60 A 48 V |
| I²t on activation | 1 A².s 24 V | 3 A².s 48 V |
| It on activation | 0.2 A.s 24 V | 0.3 A.s 48 V |
| MTBF reliability | 4600000 H |
| Protection type | Internal fuse not accessible for primary circuit | Overload protection for secondary circuit, 24 V sensor power supply | Overvoltage protection for secondary circuit, 24 V sensor power supply | Short-circuit protection for secondary circuit, 24 V sensor power supply |
| Current at secondary voltage | 1.3 A 24 V DC I/O module power supply and processor | 4.5 A 3.3 V DC I/O module logic power supply |
| Maximum power dissipation in W | 8.5 W |
| Status LED | 1 LED (green) rack voltage OK |
| Control type | RESET push-button cold restart |
| Electrical connection | 1 connector 2 pin(s)alarm relay | 1 connector 5 pin(s)line supply, protective earth |
| Maximum cable distance between devices | 10 m power supply cable copper 1.5 mm² | 15 m power supply cable copper 2.5 mm² |
| Insulation resistance | >= 10 MOhm primary/ground | >= 10 MOhm primary/secondary |
| Net weight | 0.34 kg |
| Immunity to microbreaks | 1 ms |
| Dielectric strength | 1500 V primary/ground | 1500 V primary/secondary |
| Vibration resistance | 3 gn |
| Shock resistance | 30 gn |
| IP degree of protection | IP20 |
| Directives | 2014/35/EU - low voltage directive | 2014/30/EU - electromagnetic compatibility |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | 0…60 °C |
| Relative humidity | 5…95 % at 55 °C without condensation |
| Protective treatment | TC |
| Operating altitude | 0...2000 m | 2000...5000 m with derating factor |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 13.200 cm |
| Package 1 Width | 15.500 cm |
| Package 1 Length | 15.500 cm |
| Package 1 Weight | 519.000 g |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 40.000 cm |
| Package 2 Length | 60.000 cm |
| Package 2 Weight | 7.378 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 48 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 38.000 kg |
