Schneider Electric BMXAMI0810

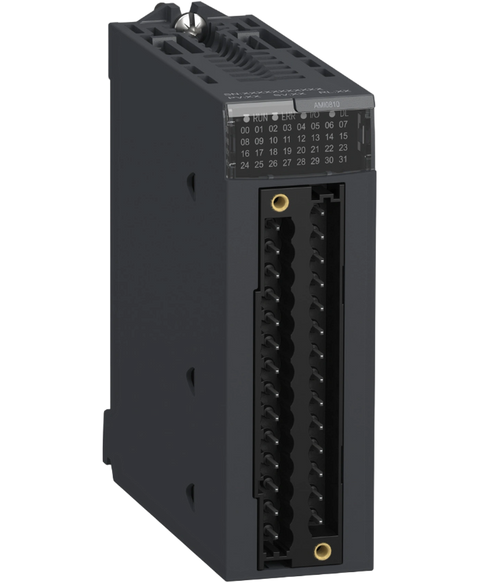

The BMXAMI0810 from Schneider Electric is an input module designed for use within the Modicon X80 series. It provides high-level input capabilities through 8 analog input channels, featuring a resolution of 15 bits plus a sign, and ensures precise data handling with 16-bit analog-to-digital conversion.
This Schneider Electric BMXAMI0810 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Analog input range and is referenced internally as PartLogic SKU PL26805543618.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon X80 |
| Product or component type | Analog input module |
| Electrical connection | 28 ways 1 connector |
| Isolation between channels | Isolated |
| Input level | High level |
| Analogue input number | 8 |
| Analogue input type | Current +/- 20 mA | Current 0...20 mA | Current 4...20 mA | Voltage +/- 10 V | Voltage +/- 5 V | Voltage 0...10 V | Voltage 0...5 V | Voltage 1...5 V |
| Analog/digital conversion | 16 bits |
| Analogue input resolution | 15 bits + sign |
| Permitted overload on inputs | +/- 30 mA 0...20 mA | +/- 30 mA 4...20 mA | +/- 30 V +/- 10 V | +/- 30 V +/- 5 V | +/- 30 V 0...10 V | +/- 30 V 0...5 V | +/- 30 V 1...5 V | +/- 30 mA +/- 20 mA |
| Input impedance | 10 MOhm in voltage mode | 250 Ohm + 3.6...50 Ohm internal protective resistor in current mode |
| Precision of internal conversion resistor | 0.1 % - 15 ppm/°C |
| Type of filter | First order digital filtering |
| Fast read cycle time | 1 ms + 1 ms x number of channels used |
| Nominal read cycle time | 9 ms for 8 channels |
| Measurement error | <= 0.1 % of full scale +/- 10 V 0...60 °C | <= 0.1 % of full scale +/- 5 V 0...60 °C | <= 0.1 % of full scale 0...10 V 0...60 °C | <= 0.1 % of full scale 0...5 V 0...60 °C | <= 0.1 % of full scale 1...5 V 0...60 °C | <= 0.3 % of full scale +/- 20 mA 0...60 °C | <= 0.3 % of full scale 0...20 mA 0...60 °C | <= 0.3 % of full scale 4...20 mA 0...60 °C | 0.15 % of full scale +/- 20 mA 25 °C | 0.15 % of full scale 0...20 mA 25 °C | 0.15 % of full scale 4...20 mA 25 °C | 0.075 % of full scale +/- 10 V 25 °C | 0.075 % of full scale 0...10 V 25 °C | 0.075 % of full scale 0...5 V 25 °C | 0.075 % of full scale 1...5 V 25 °C | 0.075 % of full scale +/- 5 V 25 °C |
| Temperature drift | 30 ppm/°C +/- 10 V | 30 ppm/°C +/- 5 V | 30 ppm/°C 0...10 V | 30 ppm/°C 0...5 V | 30 ppm/°C 1...5 V | 50 ppm/°C +/- 20 mA | 50 ppm/°C 0...20 mA | 50 ppm/°C 4...20 mA |
| Minimum crosstalk attenuation | 80 dB |
| Common mode rejection | 80 dB |
| Digital value format | - 32768 to + 32767 in maximum user scale | +/- 10000 by default |
| Isolation voltage | 300 V DC between channels | 1400 V DC between channels and ground | 1400 V DC between channels and bus |
| Measurement resolution | 0.36 mV +/- 10 V | 0.36 mV 0...10 V | 0.36 mV 0...5 V | 0.36 mV 1...5 V | 0.36 mV +/- 5 V | 1.4 µA +/- 20 mA | 1.4 µA 0...20 mA | 1.4 µA 4...20 mA |
| Maximum conversion value | +/- 11.4 V +/- 10 V | +/- 11.4 V 0...10 V | +/- 11.4 V 0...5 V | +/- 11.4 V 1...5 V | 0...30 mA +/- 20 mA | 0...30 mA 0...20 mA | 0...30 mA 4...20 mA | 0...30 mA +/- 5 V |
| MTBF reliability | 900000 H |
| Operating altitude | 0...2000 m | 2000...5000 m with derating factor |
| Status LED | 1 LED (green) RUN | 1 LED per channel (green) channel diagnostic | 1 LED (red) ERR | 1 LED (red) I/O |
| Net weight | 0.165 kg |
| Power consumption in W | 1.06 W 24 V DC typical | 1.50 W 24 V DC maximum | 0.32 W 3.3 V DC typical | 0.48 W 3.3 V DC maximum |
| Current consumption | 150 mA at 3.3 V DC | 54 mA at 24 V DC |
| Vibration resistance | 3 gn |
| Shock resistance | 30 gn |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | 0…60 °C |
| Relative humidity | 5…95 % at 55 °C without condensation |
| IP degree of protection | IP20 |
| Directives | 2014/35/EU - low voltage directive | 2014/30/EU - electromagnetic compatibility |
| Product certifications | CE | RCM | CSA | EAC | Merchant Navy | UL |
| Standards | IEC 61010-2-201 | IEC 61131-2 | UL 61010-2-201 | CSA C22.2 No 61010-2-201 |
| Protective treatment | Standard version |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.500 cm |
| Package 1 Width | 11.000 cm |
| Package 1 Length | 12.000 cm |
| Package 1 Weight | 157.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 2.702 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 240 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 49.000 kg |
