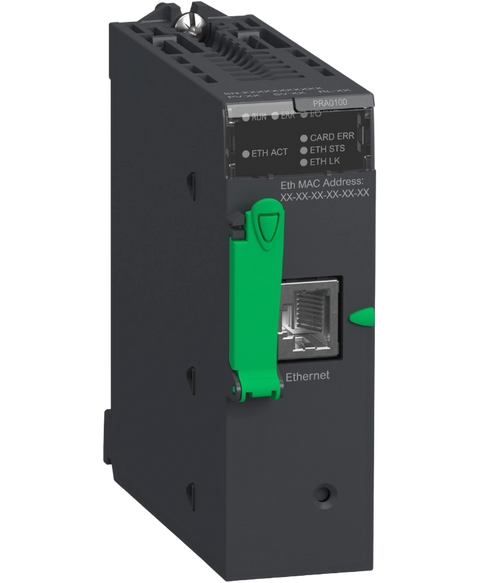

Schneider Electric BMX-PRA-0100
Remote I,O adapter module for Modicon X80, DIN rail mount.
This Schneider Electric BMX-PRA-0100 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Communication modules > Remote io range and is referenced internally as PartLogic SKU PL26805600356.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon X80 |
| Product or component type | Peripheral remote I/O adaptor |
| Number of port | 1 |
| Integrated connection type | Ethernet/IP for device network |
| Communication port protocol | Modbus TCP |
| Realtime clock | With |
| Memory capacity | 448 kB internal | 96 kB removable |
| Application structure | 1 master task |
| Local signalling | 1 LED (green) for module active (RUN) | 1 LED (red) for module error (ERR) | 1 LED (red) for external fault (I/O) | 1 LED (green) for activity on Ethernet network (ETH ACT) | 1 LED (red) for memory card fault (CARD ERR) | 1 LED (green) for Ethernet link diagnostics (STS) | 1 LED (green) for Ethernet network status (link) |
| Product compatibility | 0…1024 discrete I/O module | 0…256 analog I/O module | 0…2 Ethernet module |
| Average consumption in mA | 95 mA |
| Power dissipation in W | 2.3 W |
| Marking | CE |
| Module format | Standard |
| Maximum altitude transport | 3000 m |
| Relative humidity | 95 % without condensation |
| Directives | 2014/35/EU - low voltage directive | 2014/30/EU - electromagnetic compatibility | 2014/34/EU - ATEX directive |
| Product certifications | CE | UL | CSA | RCM | EAC | Merchant Navy | ATEX zone 2/22 | IECEx zone 2/22 |
| Standards | IEC 61131-2 | IEC 61010-2-201 | UL 61010-2-201 | CSA C22.2 No 61010-2-201 | IACS E10 | IEC 61000-6-5, interface type 1 and type 2 | IEC 61850-3, location G | IEC 60079-0 |
| Environmental characteristic | Hazardous location class I division 2 |
| IP degree of protection | IP20 |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -40…85 °C |
| Operating altitude | <= 2000 m |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.500 cm |
| Package 1 Width | 11.000 cm |
| Package 1 Length | 11.500 cm |
| Package 1 Weight | 244.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 4.000 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 240 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 74.000 kg |
