Schneider Electric BMX-CPS-3500H

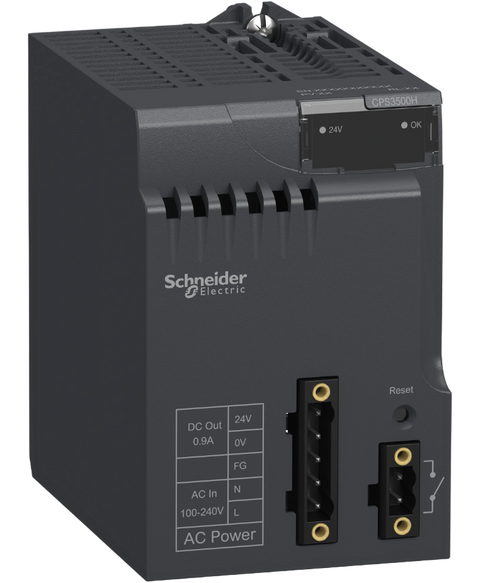

Schneider Electric BMXCPS3500H power supply module, Modicon X80.
This Schneider Electric BMX-CPS-3500H is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Power supplies range and is referenced internally as PartLogic SKU PL26805526845.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$1,563.56
(inc. GST)
In Stock
| Range of product | Modicon X80 |
| Product or component type | Power supply module |
| backplane compatibility | Not compatible with BMEXBP..02 |
| Product specific application | For severe environments |
| Primary voltage | 100...240 V |
| Supply circuit type | AC |
| Secondary power | 15 W 3.3 V DC at 0…60 °C I/O module logic power supply | 31.2 W 24 V DC at 0…60 °C I/O module power supply and processor | 11.3 W 3.3 V DC at -25…70 °C I/O module logic power supply | 23.4 W 24 V DC at -25…70 °C I/O module power supply and processor | 21.6 W 24 V DC at 0…60 °C sensor power supply | 16.2 W 24 V DC at -25…70 °C sensor power supply |
| Primary voltage limit | 85...264 V |
| Network frequency | 50/60 Hz |
| Network frequency limits | 47…63 Hz |
| Apparent power | 0.12 kVA |
| Input current | 0.52 A 240 V | 1.04 A 115 V |
| Inrush current | 30 A 120 V | 60 A 240 V |
| I²t on activation | 1 A².s 120 V | 3 A².s 240 V |
| It on activation | 0.05 A.s 120 V | 0.07 A.s 240 V |
| MTBF reliability | 4300000 H |
| Protection type | Internal fuse not accessible for primary circuit | Overload protection for secondary circuit | Overvoltage protection for secondary circuit | Short-circuit protection for secondary circuit |
| Current at secondary voltage | 0.9 A 24 V DC sensor power supply | 1.3 A 24 V DC I/O module power supply and processor | 4.5 A 3.3 V DC I/O module logic power supply |
| Maximum power dissipation in W | 8.5 W |
| Status LED | 1 LED (green) rack voltage OK | 1 LED (green) sensor voltage |
| Control type | RESET push-button cold restart |
| Electrical connection | 1 connector 2 pin(s)alarm relay | 1 connector 5 pin(s)line supply, protective earth, 24 V DC input sensor |
| Insulation resistance | >= 100 MOhm primary/ground | >= 100 MOhm primary/secondary |
| Net weight | 0.36 kg |
| Immunity to microbreaks | 1 ms |
| Dielectric strength | 1500 V primary/secondary I/O module logic power supply | 1500 V primary/secondary I/O module power supply and processor | 2300 V primary/secondary sensor power supply | 1500 V primary/ground | 500 V 24 V sensor output/ground |
| Vibration resistance | 3 gn |
| Shock resistance | 30 gn |
| IP degree of protection | IP20 |
| Directives | 2014/35/EU - low voltage directive | 2014/30/EU - electromagnetic compatibility |
| Product certifications | CE | UL | CSA | RCM | EAC | Merchant Navy |
| Standards | IEC 61131-2 | IEC 61010-2-201 | UL 61010-2-201 | CSA C22.2 No 61010-2-201 | IACS E10 | EN/IEC 61000-6-5, interface type 1 and type 2 | EN/IEC 61850-3, location G |
| Environmental characteristic | Gas resistant class Gx conforming to ISA S71.04 | Gas resistant class 3C4 conforming to IEC 60721-3-3 | Dust resistant class 3S4 conforming to IEC 60721-3-3 | Sand resistant class 3S4 conforming to IEC 60721-3-3 | Salt resistant level 2 conforming to IEC 68252 | Mold growth resistant class 3B2 conforming to IEC 60721-3-3 | Fungal spore resistant class 3B2 conforming to IEC 60721-3-3 | Hazardous location class I division 2 |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -25…70 °C |
| Relative humidity | 5…95 % at 55 °C without condensation |
| Protective treatment | Conformal coating |
| Operating altitude | 0...2000 m | 2000...5000 m with derating factor |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 13.000 cm |
| Package 1 Width | 15.500 cm |
| Package 1 Length | 16.000 cm |
| Package 1 Weight | 540.000 g |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 40.000 cm |
| Package 2 Length | 60.000 cm |
| Package 2 Weight | 7.575 kg |
