Schneider Electric BMH0702P11A2A

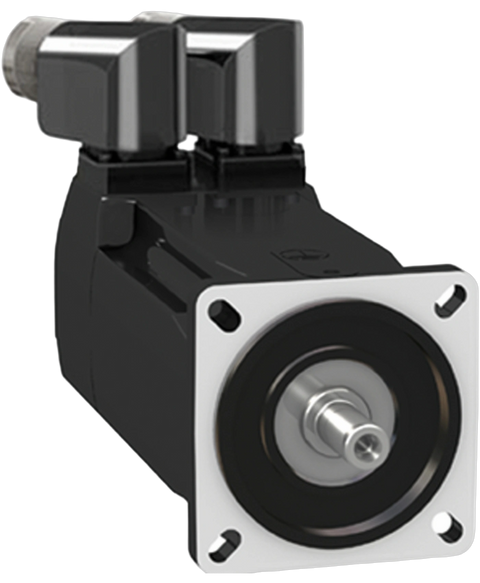

servo motor BMH - 2.5 Nm - 8000 rpm - keyed shaft - without brake - IP54
This Schneider Electric BMH0702P11A2A is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805598830.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Device short name | BMH |
| Product or component type | Servo motor |
| Maximum mechanical speed | 8000 rpm |
| Continuous stall torque | 2.5 N.m for LXM32.D12N4 at 3 A, 400 V, three phase | 2.5 N.m for LXM32.D12N4 at 3 A, 480 V, three phase |
| Peak stall torque | 7.4 N.m for LXM32.D12N4 at 3 A, 400 V, three phase | 7.4 N.m for LXM32.D12N4 at 3 A, 480 V, three phase |
| Nominal output power | 700 W for LXM32.D12N4 at 3 A, 400 V, three phase | 700 W for LXM32.D12N4 at 3 A, 480 V, three phase |
| Nominal torque | 2.2 N.m for LXM32.D12N4 at 3 A, 400 V, three phase | 2.2 N.m for LXM32.D12N4 at 3 A, 480 V, three phase |
| Nominal speed | 3000 rpm for LXM32.D12N4 at 3 A, 400 V, three phase | 3000 rpm for LXM32.D12N4 at 3 A, 480 V, three phase |
| Product compatibility | LXM32.D12N4 at 400...480 V three phase |
| Shaft end | Keyed |
| IP degree of protection | IP54 standard |
| Speed feedback resolution | 131072 points/turn |
| Holding brake | Without |
| Mounting support | International standard flange |
| Electrical connection | Rotatable right-angled connectors |
| Range compatibility | Lexium 32 |
| [Us] rated supply voltage | 480 V |
| Network number of phases | Three phase |
| Continuous stall current | 2.94 A |
| Continuous power | 1.51 W |
| Maximum current Irms | 9.65 A for LXM32.D12N4 |
| Maximum permanent current | 9.68 A |
| Second shaft | Without second shaft end |
| Shaft diameter | 11 mm |
| Shaft length | 23 mm |
| Key width | 18 mm |
| Feedback type | Single turn SinCos Hiperface |
| Motor flange size | 70 mm |
| Number of motor stacks | 2 |
| Torque constant | 0.84 N.m/A at 120 °C |
| Back emf constant | 54.08 V/krpm at 120 °C |
| Number of motor poles | 5.0 |
| Rotor inertia | 1.13 kg.cm² |
| Stator resistance | 3.8 Ohm at 20 °C |
| Stator inductance | 5.89 mH at 20 °C |
| Stator electrical time constant | 3.2 ms at 20 °C |
| Maximum radial force Fr | 710 N at 1000 rpm | 560 N at 2000 rpm | 490 N at 3000 rpm | 450 N at 4000 rpm | 410 N at 5000 rpm | 390 N at 6000 rpm |
| Maximum axial force Fa | 0.2 x Fr |
| Type of cooling | Natural convection |
| Length | 154 mm |
| Centring collar diameter | 60 mm |
| Centring collar depth | 2.5 mm |
| Number of mounting holes | 4 |
| Mounting holes diameter | 5.5 mm |
| Circle diameter of the mounting holes | 82 mm |
| Net weight | 2.3 kg |
| Sizing reference | BMH0702P |
| Accuracy error [angular] | 1.4 ° |
| Temperature copper hot | 135 °C |
| Temperature magnet hot | 100 °C |
| Temperature magnet rt | 20 °C |
| Output current 3s peak | 9.65 A |
| Inertia | 0.0 kg.cm² of brake | 1.129 kg.cm² of motor |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 11.000 cm |
| Package 1 Width | 19.000 cm |
| Package 1 Length | 39.000 cm |
| Package 1 Weight | 2.973 kg |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 4 |
| Package 2 Height | 30 cm |
| Package 2 Width | 40 cm |
| Package 2 Length | 60 cm |
| Package 2 Weight | 12.542 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 16 |
| Package 3 Height | 45.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 62.168 kg |
