Schneider Electric BMEXBP1200

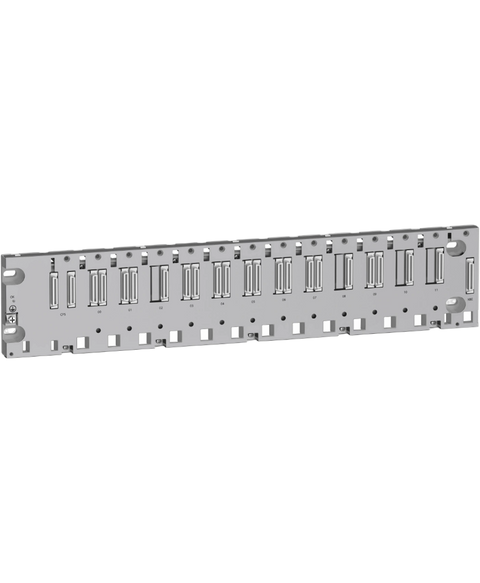

The BMEXBP1200 from Schneider Electric is an Ethernet backplane designed for the Modicon series. It provides 8 bus slots, enabling connection for multiple devices, all powered by a consumption of only 283 mW at 3.3 V DC.
This Schneider Electric BMEXBP1200 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Racks range and is referenced internally as PartLogic SKU PL26805664527.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon X80 |
| Accessory / separate part type | Rack |
| Number of slots | 8 bus X + Ethernet | 4 bus X |
| Product compatibility | I/O module | Specific application module | BMXCPS power supply | BMX processor | BME processor |
| Power consumption in W | 283 mW 3.3 V DC | 3.9 W 24 V DC |
| Electrical connection | 1 connector (XBE) expansion module |
| Fixing mode | By 4 M6 screws, mounting on plate | By 4 screws - diameter: 4.32…6.35 mm, mounting on panel |
| Current consumption | 164 mA at 24 V DC | 86 mA at 3.3 V DC |
| MTBF reliability | 1166108 H |
| Net weight | 1.377 kg |
| IP degree of protection | IP20 |
| Ambient air temperature for operation | 0…60 °C |
| Relative humidity | 5…95 % without condensation |
| Directives | 2014/35/EU - low voltage directive | 2014/30/EU - electromagnetic compatibility |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.700 cm |
| Package 1 Width | 15.400 cm |
| Package 1 Length | 58.500 cm |
| Package 1 Weight | 1.367 kg |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 40.000 cm |
| Package 2 Length | 60.000 cm |
| Package 2 Weight | 11.768 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 32 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 54.000 kg |
