Schneider Electric BMEXBP0800

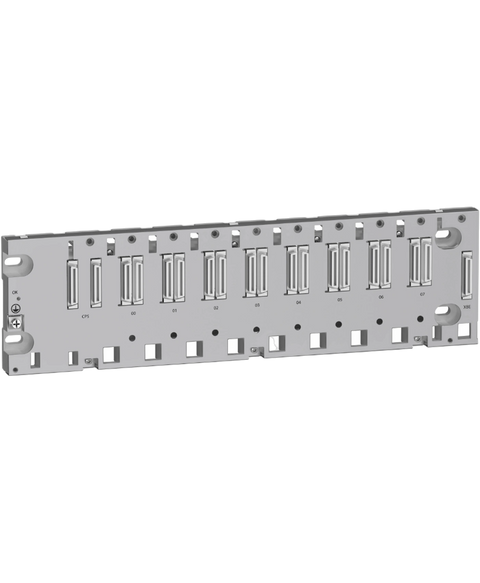

The BMEXBP0800 from Schneider Electric is an Ethernet backplane designed for use with Modicon systems. It features 8 slots and operates at a power consumption of 3.9 W. This device is capable of handling a supply voltage of 24,3 volts DC, making it suitable for various applications.
This Schneider Electric BMEXBP0800 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Racks range and is referenced internally as PartLogic SKU PL26805538738.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon X80 |
| Accessory / separate part type | Rack |
| Number of slots | 8 bus X + Ethernet |
| Product compatibility | I/O module | BMX processor | Specific application module | BMXCPS power supply | BME processor |
| Power consumption in W | 211 mW 3.3 V DC | 3.9 W 24 V DC |
| Electrical connection | 1 connector (XBE) expansion module |
| Fixing mode | By 4 screws - diameter: 4.32…6.35 mm, mounting on panel | By 4 M6 screws, mounting on plate | By clips, mounting on 35 mm symmetrical DIN rail |
| Current consumption | 64 mA at 3.3 V DC | 164 mA at 24 V DC |
| MTBF reliability | 1297516 H |
| Net weight | 1.06 kg |
| IP degree of protection | IP20 |
| Ambient air temperature for operation | 0…60 °C |
| Relative humidity | 5…95 % without condensation |
| Directives | 2014/35/EU - low voltage directive | 2014/30/EU - electromagnetic compatibility |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.800 cm |
| Package 1 Width | 15.500 cm |
| Package 1 Length | 46.000 cm |
| Package 1 Weight | 1.078 kg |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 9 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 40.000 cm |
| Package 2 Length | 60.000 cm |
| Package 2 Weight | 10.544 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 36 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 53.000 kg |
