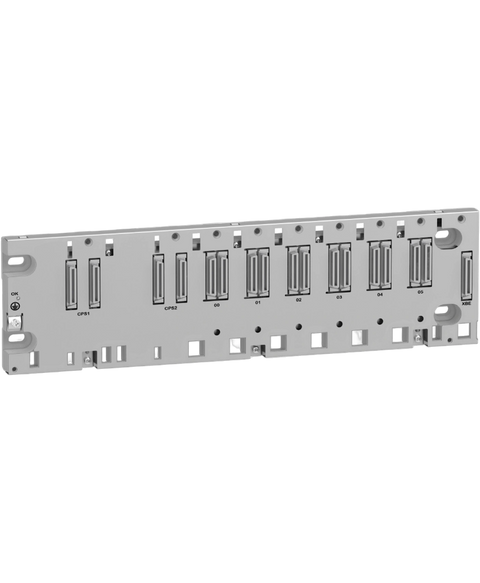

Schneider Electric BMEXBP0602
rack X80 - 6 slots - Redundant PS - Ethernet backplane
This Schneider Electric BMEXBP0602 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Racks range and is referenced internally as PartLogic SKU PL26805551260.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon X80 |
| Accessory / separate part type | Rack |
| Number of slots | 6 bus X + Ethernet |
| Product compatibility | Specific application module | BMX processor | I/O module | BME processor | BMXCPS4002 |
| Power consumption in W | 191 mW 3.3 V DC | 3.6 W 24 V DC |
| Electrical connection | 1 connector (XBE) expansion module |
| Fixing mode | By 4 screws - diameter: 4.32…6.35 mm, mounting on panel | By 4 M6 screws, mounting on plate | By clips, mounting on 35 mm symmetrical DIN rail |
| Current consumption | 152 mA at 24 V DC | 58 mA at 3.3 V DC |
| MTBF reliability | 1353797 H |
| Net weight | 1.02 kg |
| IP degree of protection | IP20 |
| Ambient air temperature for operation | 0…60 °C |
| Relative humidity | 5…95 % without condensation |
| Directives | 2014/35/EU - low voltage directive | 2014/30/EU - electromagnetic compatibility |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.700 cm |
| Package 1 Width | 15.200 cm |
| Package 1 Length | 45.600 cm |
| Package 1 Weight | 1.007 kg |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 9 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 40.000 cm |
| Package 2 Length | 60.000 cm |
| Package 2 Weight | 10.010 kg |
