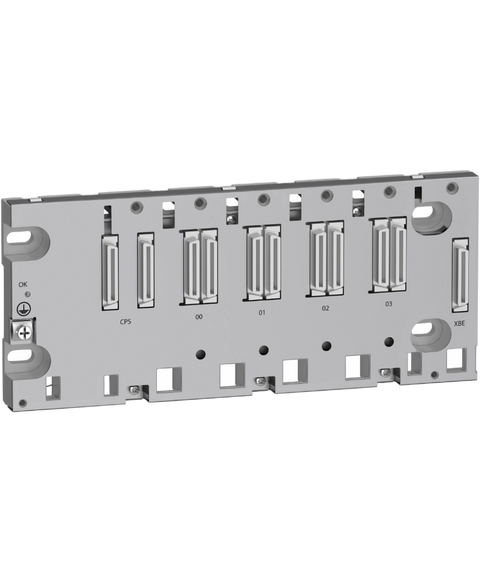

Schneider Electric BMEXBP0400
The BMEXBP0400 is an Ethernet backplane from Schneider Electric’s Modicon X80 series, designed for efficient module integration in automated systems. It offers four slots for module installation and supports the BMXCPS power supply modules.
This Schneider Electric BMEXBP0400 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Racks range and is referenced internally as PartLogic SKU PL26805656686.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon X80 |
| Accessory / separate part type | Rack |
| Number of slots | 4 bus X + Ethernet |
| Product compatibility | I/O module | BMX processor | Specific application module | BMXCPS power supply | BME processor |
| Power consumption in W | 162 mW 3.3 V DC | 2.8 W 24 V DC |
| Electrical connection | 1 connector (XBE) expansion module |
| Fixing mode | By 4 screws - diameter: 4.32…6.35 mm, mounting on panel | By 4 M6 screws, mounting on plate | By clips, mounting on 35 mm symmetrical DIN rail |
| Current consumption | 49 mA at 3.3 V DC | 118 mA at 24 V DC |
| MTBF reliability | 1588025 H |
| Net weight | 0.705 kg |
| IP degree of protection | IP20 |
| Ambient air temperature for operation | 0…60 °C |
| Relative humidity | 5…95 % without condensation |
| Directives | 2014/35/EU - low voltage directive | 2014/30/EU - electromagnetic compatibility |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.600 cm |
| Package 1 Width | 15.000 cm |
| Package 1 Length | 32.500 cm |
| Package 1 Weight | 702.000 g |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 13 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 40.000 cm |
| Package 2 Length | 60.000 cm |
| Package 2 Weight | 10.086 kg |
