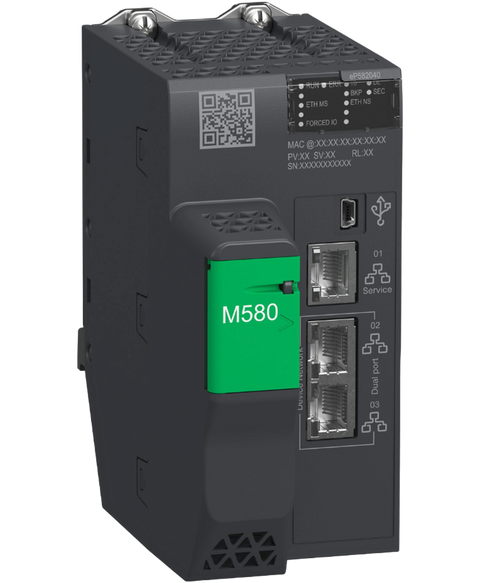

Schneider Electric BMEP582040
The BMEP582040 from Schneider Electric is a processor module designed for the Modicon series. It features a voltage rating of 24 VDC and allows for four racks, making it suitable for various control applications.
This Schneider Electric BMEP582040 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Programmable logic controllers range and is referenced internally as PartLogic SKU PL26805756412.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon M580 |
| Product or component type | Processor module |
| Number of racks | 4 |
| Local I/O processor capacity (discrete) | 2048 I/O |
| Local I/O processor capacity (analog) | 512 I/O |
| Number of application specific channel (local rack) | 72 |
| Application specific I/O | Serial link | Counter | Accurate time stamping | HART | Motion control | SSI encoder |
| Checks | Process control |
| Control channels | Programmable loops |
| Integrated connection type | 1 Ethernet TCP/IP for service port | 2 Ethernet TCP/IP for device network | USB type mini B |
| Number of remote I/O station | 8 - 2 rack(s) per remote drop |
| Number of distributed equipment | 64 |
| Communication module processor capacity | 2 Ethernet communication module | 16 AS-Interface module |
| Communication service | DIO scanner | RIO scanner |
| Memory description | Expandable flash, 4 GB for data storage | Integrated RAM, 10 kB for system memory | Integrated RAM, 8 MB for program process | Integrated RAM, 768 kB for data process | Integrated RAM, 2 MB for program safety | Integrated RAM, 512 KB for data safety |
| Application structure | 64 event tasks | 2 auxiliary tasks | 1 cyclic/periodic master task | 1 periodic fast task |
| Cybersecurity | Achilles certified | DoS prevention | IPSec | SNMP logging | Syslog protocol support | Transport layer security | Audit trail | Embedded firewall | Firmware signature | Password protection | Port hardening | Secure communication (HTTPS) | Security log |
| Number of instructions per ms | 30 Kinst/ms 65 % Boolean + 35 % fixed arithmetic | 40 Kinst/ms 100 % Boolean |
| Current consumption | 270 mA at 24 V DC |
| MTBF reliability | 775000 H |
| Marking | CE |
| Vibration resistance | 3 gn |
| Shock resistance | 15 gn |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -40…85 °C |
| Operating altitude | 0...2000 m | 2000...5000 m with derating factor |
| Relative humidity | 5…95 % at 55 °C without condensation |
| IP degree of protection | IP20 |
| Directives | 2014/35/EU - low voltage directive | 2014/30/EU - electromagnetic compatibility |
| Product certifications | CE | UL | CSA | RCM | EAC | Merchant Navy |
| Standards | IEC 61131-2 | IEC 61010-2-201 | UL 61010-2-201 | CSA C22.2 No 61010-2-201 | IACS E10 | EN/IEC 61000-6-5, interface type 1 and type 2 | EN/IEC 61850-3, location G |
| Environmental characteristic | Safety | Corrosion resistance | Salt mist | Dust resistant | Hazardous location class I division 2 |
| Supply | Internal power supply via rack |
| Status LED | 1 LED (green) processor running (RUN) | 1 LED (red) processor or system fault (ERR) | 1 LED (red) I/O module fault (I/O) | 1 LED (green) download in progress (DL) | 1 LED (red) memory card or CPU flash fault (BACKUP) | 1 LED (green/red) ETH MS (Ethernet port configuration status) | 1 LED (green/red) Eth NS (Ethernet network status) | 1 LED (green) processor in safety mode (SRUN) | 1 LED (green) processor in maintenance mode (SMOD) | 1 LED (red) I/O values overrided by user (FORCED IO) |
| Net weight | 0.849 kg |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 9.200 cm |
| Package 1 Width | 17.800 cm |
| Package 1 Length | 25.200 cm |
| Package 1 Weight | 874.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 5.634 kg |
