Schneider Electric BMEP581020

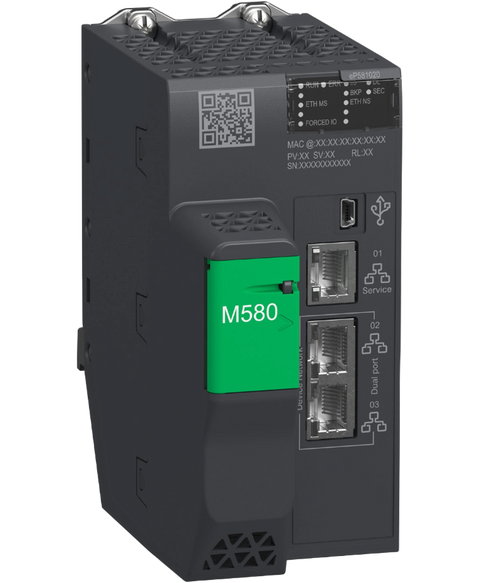

The BMEP581020 processor module by Schneider Electric is designed for robust automation control. It features a capacity of 1024 discrete I,O and 256 analog I,O channels over four racks. The module supports multiple programmable control loops.
This Schneider Electric BMEP581020 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Programmable logic controllers range and is referenced internally as PartLogic SKU PL26805559233.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon M580 |
| Product or component type | Processor module |
| Number of racks | 4 |
| Local I/O processor capacity (discrete) | 1024 I/O |
| Local I/O processor capacity (analog) | 256 I/O |
| Number of application specific channel (local rack) | 36 |
| Application specific I/O | Accurate time stamping | Motion control | Counter | HART | SSI encoder | Serial link |
| Checks | Process control |
| Control channels | Programmable loops |
| Integrated connection type | 1 Ethernet TCP/IP for service port | 2 Ethernet TCP/IP for device network | USB type mini B |
| Number of distributed equipment | 64 |
| Communication module processor capacity | 2 Ethernet communication module | 2 AS-Interface module |
| Communication service | DIO scanner |
| Memory description | Integrated RAM, 4 MB for program | Integrated RAM, 384 kB for data | Expandable flash, 4 GB for data storage | Integrated RAM, 10 kB for system memory |
| Application structure | 1 periodic fast task | 2 auxiliary tasks | 1 cyclic/periodic master task | 64 event tasks |
| Cybersecurity | Achilles certified | DoS prevention | IPSec | SNMP logging | Syslog protocol support | Transport layer security | Audit trail | Embedded firewall | Firmware signature | Password protection | Port hardening | Secure communication (HTTPS) | Security log |
| Number of instructions per ms | 30 Kinst/ms 65 % Boolean + 35 % fixed arithmetic | 40 Kinst/ms 100 % Boolean |
| Current consumption | 270 mA at 24 V DC |
| MTBF reliability | 775000 H |
| Marking | CE |
| Vibration resistance | 3 gn |
| Shock resistance | 30 gn |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -40…85 °C |
| Operating altitude | 0...2000 m | 2000...5000 m with derating factor |
| Relative humidity | 5…95 % at 55 °C without condensation |
| IP degree of protection | IP20 |
| Directives | 2014/35/EU - low voltage directive | 2014/30/EU - electromagnetic compatibility |
| Product certifications | CE | UL | CSA | RCM | EAC | Merchant Navy |
| Standards | IEC 61131-2 | IEC 61010-2-201 | UL 61010-2-201 | CSA C22.2 No 61010-2-201 | IACS E10 | EN/IEC 61000-6-5, interface type 1 and type 2 | EN/IEC 61850-3, location G |
| Environmental characteristic | Hazardous location class I division 2 |
| Supply | Internal power supply via rack |
| Status LED | 1 LED (green) processor running (RUN) | 1 LED (red) processor or system fault (ERR) | 1 LED (red) I/O module fault (I/O) | 1 LED (green) download in progress (DL) | 1 LED (red) memory card or CPU flash fault (BACKUP) | 1 LED (green/red) ETH MS (Ethernet port configuration status) | 1 LED (green/red) Eth NS (Ethernet network status) |
| Net weight | 0.849 kg |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 9.000 cm |
| Package 1 Width | 17.800 cm |
| Package 1 Length | 25.200 cm |
| Package 1 Weight | 871.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 5.660 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 48 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 55.280 kg |
