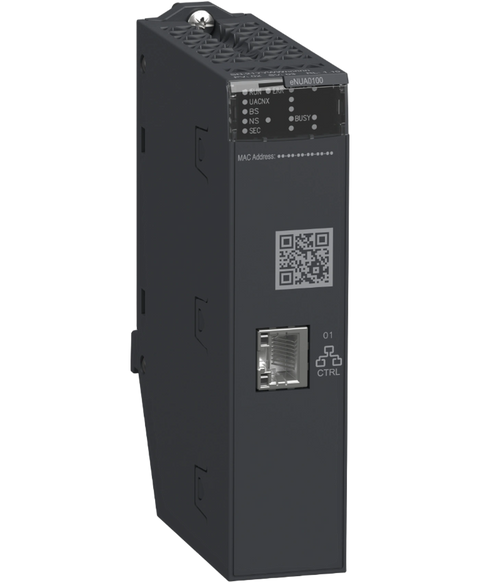

Product image for illustrative purposes only. Actual item may vary.
Schneider Electric BMENUA0100
OPC UA module for M580
This Schneider Electric BMENUA0100 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Communication modules > Ethernet range and is referenced internally as PartLogic SKU PL26926377864.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$3,032.15
(inc. GST)
In Stock
| Range of product | Modicon M580 |
| Product or component type | Communication module |
| Device application | OPC UA server & IT control network |
| Product compatibility | Modicon M580 standalone CPU (BMEP58…..) | Modicon M580 Redundant CPU (BMEH58…..) | Modicon M580 safety CPU (non interfering type 1) (BMEP582…..) | Modicon M580 safety Redundant CPU (non interfering type 1) (BMEH582…..) | Modicon X80 Rack with Ethernet backplane (BMEXBP…..) |
| Mounting location | Main rack |
| Backplane slot location | Ethernet + X-bus Slot |
| Slot occupied by module | 1 |
| Maximum number of modules per rack | 2 |
| Supply | Internal power supply via rack |
| Integrated connection type | 1 Ethernet port, connector type: RJ45, transmission rate: 10/100/1000 Mbit/s, transmission mode: double shielded twisted pair |
| Exchange mode | Half duplex and full duplex |
| Transmission support medium | Ethernet backplane |
| OPC UA | OPC UA server | 10 clients connection max | 50000 monitored item max in standard sampling mode | 2000 monitored item max in fast sampling mode | 40 maximum subscriptions per session | 250 ms, minimum publishing interval in standard sampling mode | 20 ms, minimum sampling interval in fast sampling mode | 20 ms, minimum publishing interval in fast sampling mode | 125 ms, sampling interval in standard sampling mode | 100000, maximum number of nodes | Hot redundancy mode |
| Source timestamping | Only digital IOs or variables | 250 ms, minimum polling of buffer | 5000 ms, maximum polling of buffer |
| Network | IPV6 | IP forwarding (Front port and backplane) | Service forwarding | Network segmentation |
| Communication service | Modbus TCP server for module diagnostics | Network management SNMP agent V1 and V3 | Time synchronization NTP V4 - Client and Server |
| Cybersecurity | Secure communication (HTTPS) | Built-in firewall | Certificate based authentication | System hardening | Role-based access control | Syslog protocol support | IPSec (initiator and responder role) | Network physical isolation | Achilles level 2 tested |
| Function available | CCOTF (configuration change on the fly) | Hot swappable module | Advanced diagnostic information (DDT, web pages, OPC UA objects) | SCADA connection through Modbus TCP |
| Web server | For commissioning, operational and maintenance |
| Current consumption | <= 140 mA at 24 V DC |
| Local signalling | 1 LED (green) for processor running (RUN) | 1 LED (red) for processor or system fault (ERR) | 1 LED (green/red) for ETH MS (Ethernet port configuration status) | 1 LED (green/red) for Eth NS (Ethernet network status) | 1 LED (green/red) for status (STS) | 1 LED (yellow) for communication data bus |
| Width | 32 mm |
| Height | 131 mm |
| Length | 86.05 mm |
| Net weight | 0.4 kg |
| IP degree of protection | IP20 |
| Protective treatment | Standard version |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -40…85 °C |
| Relative humidity | 5…95 % at 55 °C without condensation |
| Operating altitude | 0...2000 m | 2000 m...5000 m with derating factor |
| vibration resistance | 3 gn |
| Shock resistance | 30 gn |
| Marking | CE |
| Product certifications | CE | CULus | RCM | UKCA | EAC | Merchant Navy |
| Standards | IEC 61131-2 | IEC 61010-2-201 | UL 61010-2-201 | CSA C22.2 No 61010-2-201 | IACS E10 | EN/IEC 61000-6-5, interface type 1 & type 2 | EN/IEC 61850-3, location G |
| Directives | 2014/35/EU - low voltage directive | 2014/30/EU - electromagnetic compatibility |
| Environmental characteristic | Hazardous location class I division 2 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.500 cm |
| Package 1 Width | 18.000 cm |
| Package 1 Length | 26.000 cm |
| Package 1 Weight | 530.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 4.736 kg |
