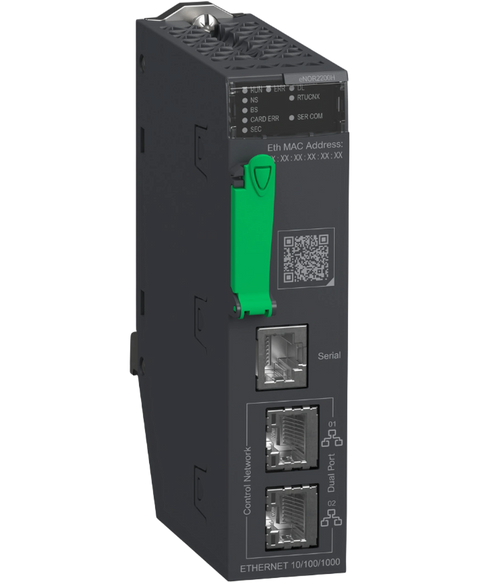

Product image for illustrative purposes only. Actual item may vary.
Schneider Electric BMENOR2200H
Mod X80 RTU advanced, Ethernet, 1p Serial, reinforced
This Schneider Electric BMENOR2200H is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Communication modules > Fiber optic range and is referenced internally as PartLogic SKU PL26897222772.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$3,688.48
(inc. GST)
In Stock
| Range of product | Modicon M580 |
| Product or component type | Communication module |
| Device application | Remote monitoring and telecontrol application |
| Product compatibility | Modicon M580 standalone CPU (BMEP58…..) | Modicon M580 Redundant CPU (BMEH58…..) | Modicon M580 safety CPU (non interfering type 1) (BMEP582…..) | Modicon M580 safety Redundant CPU (non interfering type 1) (BMEH582…..) | Modicon X80 Rack with Ethernet backplane (BMEXBP…..) |
| Mounting location | Main rack |
| Backplane slot location | Ethernet + X-bus Slot |
| Slot occupied by module | 1 |
| Maximum number of modules per rack | 4 |
| Supply | Internal power supply via rack |
| Integrated connection type | 1 RS232, connector type: RJ45, transmission rate: 115200 bit/s, transmission mode: 8 wires | 1 RS485, connector type: RJ45, transmission rate: 115200 bit/s, transmission mode: 1 twisted shielded pair | 2 Ethernet, connector type: RJ45, transmission rate: 10/100/1000 Mbit/s, transmission mode: double shielded twisted pair |
| Memory description | Support flash SD memory card (BMXRMS004GPF) 4 GB |
| Communication service | DNP3 NET server SAv2/SAv5 with pre-shared key | DNP3 NET client SAv2/SAv5 with pre-shared key | IEC 60870-5-101 server/client | IEC 60870-5-104 server/client | Modbus TCP messaging | Web server (HTTPS), HTML5 | FDR client | SNTP client | SNMP V1/V3 agent | Time stamped events management | Automatic events backup on power loss | Transparent events routing from remote servers to SCADA | Data logging service | IEC60870-5-104 channel redundancy | DNP3 NET multiple session | Crashlog | NAT router | IP forwarding |
| Cybersecurity | Role-based access control | System hardening | Secure communication (HTTPS) | Achilles certified | Syslog protocol support | Transport layer security for RTU protocols | SNMP logging | Certificate based authentication | NAT | Network physical isolation |
| Current consumption | 137 mA at 24 V DC |
| Local signalling | 1 LED (green/red) for cyber security (SEC) | 1 LED (yellow) for serial communication (SER COM) | 1 LED (red) for download in progress (DL) | 1 LED (red) for processor or system fault (ERR) | 1 LED (red) for memory card fault (CARD ERR) | 1 LED (green) for processor running (RUN) | 1 LED (green/red) for status of control ethernet (NS) | 1 LED (green) for RTU connection status (RTUCNX) | 1 LED (green/red) for status of backplane ethernet (BS) |
| Width | 32 mm |
| Height | 131 mm |
| Length | 86 mm |
| Net weight | 0.41 kg |
| IP degree of protection | IP20 |
| Protective treatment | Conformal coating |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -40…85 °C |
| Operating altitude | 0...2000 m | 2000 m...5000 m with derating factor |
| vibration resistance | 3 gn |
| Shock resistance | 30 gn |
| Marking | CE |
| Product certifications | CE | UL | CSA | RCM | EAC | Merchant Navy | ATEX zone 2/22 | IECEx zone 2/22 | UKCA type 1 | UKCA |
| Standards | IEC 61131-2 | IEC 61010-2-201 | UL 61010-2-201 | CSA C22.2 No 61010-2-201 | IACS E10 | IEC 61000-6-5, interface type 1 and type 2 | IEC 61850-3, location G | IEC 60079-0 |
| Directives | 2014/35/EU - low voltage directive | 2014/30/EU - electromagnetic compatibility | 2014/34/EU - ATEX directive |
| Environmental characteristic | Gas resistant class Gx conforming to ISA S71.04 | Gas resistant class 3C4 conforming to IEC 60721-3-3 | Dust resistant class 3S4 conforming to IEC 60721-3-3 | Sand resistant class 3S4 conforming to IEC 60721-3-3 | Salt resistant level 2 conforming to IEC 68252 | Mold growth resistant class 3B2 conforming to IEC 60721-3-3 | Fungal spore resistant class 3B2 conforming to IEC 60721-3-3 | Hazardous location class I division 2 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.300 cm |
| Package 1 Width | 17.800 cm |
| Package 1 Length | 26.000 cm |
| Package 1 Weight | 564.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 4.983 kg |
