Schneider Electric BMENOC0301

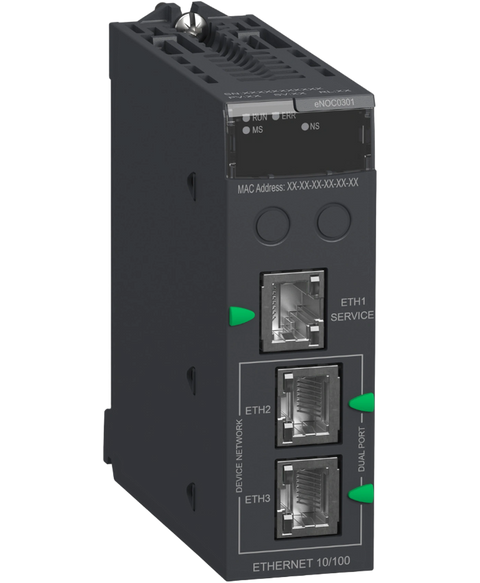

The BMENOC0301 Ethernet Communication Module from Schneider Electric is designed for installation in the main rack of Modicon systems. It allows for high-speed data transfer with a connection rate of 10,100 Mbit,s, efficiently utilizing double shielded twisted pair cabling.
This Schneider Electric BMENOC0301 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Communication modules > Ethernet range and is referenced internally as PartLogic SKU PL26805642898.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon M580 |
| Product or component type | Communication module |
| Device application | Process and control communication module |
| Product compatibility | Modicon M580 standalone CPU (BMEP58…..) | Modicon M580 Redundant CPU (BMEH58…..) | Modicon M580 safety CPU (non interfering type 1) (BMEP582…..) | Modicon M580 safety Redundant CPU (non interfering type 1) (BMEH582…..) | Modicon X80 Rack with Ethernet backplane (BMEXBP…..) |
| Mounting location | Main rack |
| Backplane slot location | Ethernet + X-bus Slot |
| Slot occupied by module | 1 |
| Maximum number of modules per rack | 4 |
| Supply | Internal power supply via rack |
| Integrated connection type | 3 Ethernet, connector type: RJ45, transmission rate: 10/100 Mbit/s, transmission mode: double shielded twisted pair |
| Transmission support medium | Ethernet backplane |
| Communication service | Bandwidth management | FDR server | SNMP network administrator | Modbus TCP I/O Scanner and Messaging | Ethernet/IP I/O Scanner and Messaging | RSTP support | Port mirroring | Embedded multiport switch |
| Web server | For commissioning, operational and maintenance |
| Current consumption | 900 mA at 3.3 V DC (for product version >= 13) | 1800 mA at 3.3 V DC (for product version < 13) |
| Local signalling | 1 LED (green) for processor running (RUN) | 1 LED (red) for processor or system fault (ERR) | 1 LED (green/red) for ETH MS (Ethernet port configuration status) | 1 LED (green/red) for Eth NS (Ethernet network status) |
| Width | 32 mm |
| Height | 103.7 mm |
| Length | 86 mm |
| Net weight | 0.2 kg |
| IP degree of protection | IP20 |
| Ambient air temperature for operation | 0…60 °C |
| Marking | CE |
| Directives | 2014/35/EU - low voltage directive | 2014/30/EU - electromagnetic compatibility |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.500 cm |
| Package 1 Width | 11.200 cm |
| Package 1 Length | 12.000 cm |
| Package 1 Weight | 250.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 4.100 kg |
