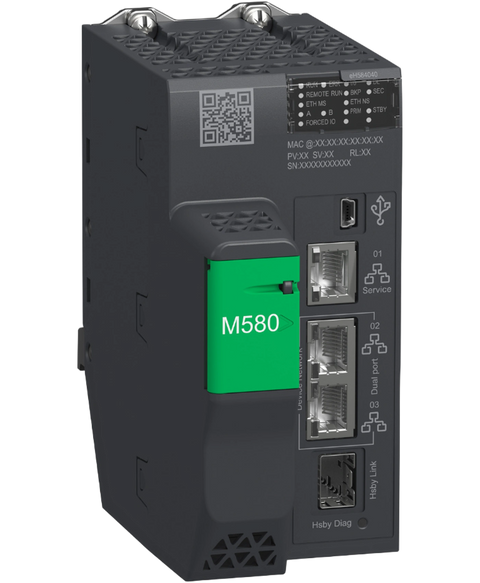

Schneider Electric BMEH584040
The BMEH584040 from Schneider Electric is a redundant processor module suitable for Modicon systems. Designed for robust performance, it features a compact form factor with support for one rack and accommodates 16 remote I,O stations.
This Schneider Electric BMEH584040 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Programmable logic controllers range and is referenced internally as PartLogic SKU PL26805598874.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon M580 |
| Product or component type | Redundant processor module |
| Number of racks | 1 |
| Application specific I/O | HART | SSI encoder | Serial link | Motion control | Accurate time stamping | Counter |
| Checks | Process control |
| Control channels | Programmable loops |
| Integrated connection type | 1 Ethernet TCP/IP for service port | 2 Ethernet TCP/IP for device network | USB type mini B | 1 Ethernet for HSBY port |
| Number of remote I/O station | 16 - 2 rack(s) per X80 and Quantum drops |
| Number of distributed equipment | 64 |
| Communication module processor capacity | 8 AS-Interface module | 16 Ethernet communication module |
| Communication service | RIO scanner | DIO scanner |
| Memory description | Expandable flash, 4 GB for data storage | Integrated RAM, 10 kB for system memory | Integrated RAM, 16 MB for program | Integrated RAM, 2048 kB for data |
| Application structure | 1 cyclic/periodic master task | 1 periodic fast task |
| Cybersecurity | Achilles certified | DoS prevention | IPSec | SNMP logging | Syslog protocol support | Transport layer security | Audit trail | Embedded firewall | Firmware signature | Password protection | Port hardening | Secure communication (HTTPS) | Security log |
| Number of instructions per ms | 30 Kinst/ms 65 % Boolean + 35 % fixed arithmetic | 40 Kinst/ms 100 % Boolean |
| Current consumption | 360 mA at 24 V DC |
| MTBF reliability | 650000 H |
| Marking | CE |
| Vibration resistance | 3 gn |
| Shock resistance | 30 gn |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -40…85 °C |
| Operating altitude | 0...2000 m | 2000...5000 m with derating factor |
| Relative humidity | 5…95 % at 55 °C without condensation |
| IP degree of protection | IP20 |
| Directives | 2014/35/EU - low voltage directive | 2014/30/EU - electromagnetic compatibility |
| Supply | Internal power supply via rack |
| Status LED | 1 LED (green) processor running (RUN) | 1 LED (red) processor or system fault (ERR) | 1 LED (red) I/O module fault (I/O) | 1 LED (green) download in progress (DL) | 1 LED (red) memory card or CPU flash fault (BACKUP) | 1 LED (green/red) ETH MS (Ethernet port configuration status) | 1 LED (green/red) Eth NS (Ethernet network status) | 1 LED (green) peer processor running (REMOTE RUN) | 1 LED (green) processor ID set to A (A) | 1 LED (green) processor ID set to B (B) | 1 LED (green) processor acting as Primary (PRIM) | 1 LED (green) processor acting as Standby (STBY) | 1 LED (green) I/O values overrided by user (FORCED IO) | 1 LED (green) Hot standby link status (Hsby Diag) |
| Net weight | 0.849 kg |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 9.100 cm |
| Package 1 Width | 18.000 cm |
| Package 1 Length | 25.800 cm |
| Package 1 Weight | 884.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 5.770 kg |
