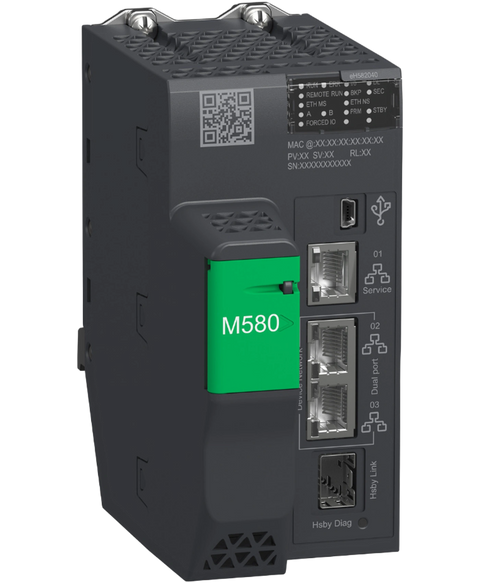

Schneider Electric BMEH582040
Modicon M580 processor, 8 MB, 61 Ethernet devices, 8 local racks and 8 remote I,O racks
This Schneider Electric BMEH582040 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Programmable logic controllers range and is referenced internally as PartLogic SKU PL26897094192.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon M580 |
| Product or component type | Redundant processor module |
| Number of racks | 1 |
| Application specific I/O | Counter | Accurate time stamping | Serial link | HART | Motion control | SSI encoder |
| Checks | Process control |
| Control channels | Programmable loops |
| Integrated connection type | 1 Ethernet TCP/IP for service port | 2 Ethernet TCP/IP for device network | USB type mini B | 1 Ethernet for HSBY port |
| Number of remote I/O station | 8 - 2 rack(s) per X80 remote drop |
| Number of distributed equipment | 64 |
| Communication module processor capacity | 2 Ethernet communication module | 16 AS-Interface module |
| Communication service | DIO scanner | RIO scanner |
| Memory description | Expandable flash, 4 GB for data storage | Integrated RAM, 10 kB for system memory | Integrated RAM, 8 MB for program | Integrated RAM, 768 kB for data |
| Application structure | 1 periodic fast task | 1 cyclic/periodic master task |
| Cybersecurity | Achilles certified | DoS prevention | IPSec | SNMP logging | Syslog protocol support | Transport layer security | Audit trail | Embedded firewall | Firmware signature | Password protection | Port hardening | Secure communication (HTTPS) | Security log |
| Number of instructions per ms | 30 Kinst/ms 65 % Boolean + 35 % fixed arithmetic | 40 Kinst/ms 100 % Boolean |
| Current consumption | 270 mA at 24 V DC |
| MTBF reliability | 650000 H |
| Marking | CE |
| Vibration resistance | 3 gn |
| Shock resistance | 30 gn |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -40…85 °C |
| Operating altitude | 0...2000 m | 2000...5000 m with derating factor |
| Relative humidity | 5…95 % at 55 °C without condensation |
| IP degree of protection | IP20 |
| Directives | 2014/35/EU - low voltage directive | 2014/30/EU - electromagnetic compatibility |
| Supply | Internal power supply via rack |
| Status LED | 1 LED (green) processor running (RUN) | 1 LED (red) processor or system fault (ERR) | 1 LED (red) I/O module fault (I/O) | 1 LED (green) download in progress (DL) | 1 LED (red) memory card or CPU flash fault (BACKUP) | 1 LED (green/red) ETH MS (Ethernet port configuration status) | 1 LED (green/red) Eth NS (Ethernet network status) | 1 LED (green) peer processor running (REMOTE RUN) | 1 LED (green) processor ID set to A (A) | 1 LED (green) processor ID set to B (B) | 1 LED (green) processor acting as Primary (PRIM) | 1 LED (green) processor acting as Standby (STBY) | 1 LED (green) I/O values overrided by user (FORCED IO) | 1 LED (green) Hot standby link status (Hsby Diag) |
| Net weight | 0.849 kg |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.800 cm |
| Package 1 Width | 17.800 cm |
| Package 1 Length | 25.000 cm |
| Package 1 Weight | 883.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 5.795 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 48 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 56.360 kg |
