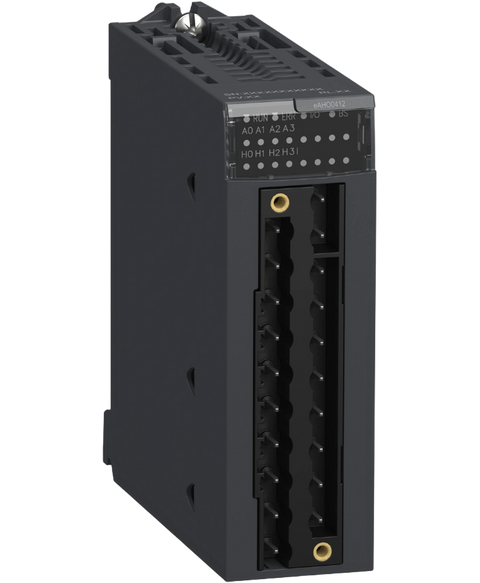

Schneider Electric BMEAHO0412
analog ouput module X80 - 4 outputs HART - current Isolated
This Schneider Electric BMEAHO0412 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Analog output range and is referenced internally as PartLogic SKU PL26805542375.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon X80 |
| Product or component type | Analog output module |
| Application specific I/O | HART |
| Product compatibility | BMEP58... processor | BMEXBP... backplane | ABE7CPA21 | Head module BMECRA31210 | BMXFTB20... terminal block |
| Electrical connection | 20 ways terminal block | Telefast |
| Isolation between channels | Isolated |
| Measurement error | 0.1 % of full scale 25 °C | 0.2 % of full scale 0...60 °C |
| Temperature drift | 45 ppm/°C |
| Isolation voltage | 1000 V DC for 60 s between channels | 1400 V DC for 60 s between channels and ground | 1400 V DC for 60 s between channels and bus |
| Checks | Broken wire detection |
| Load impedance ohmic | 600 Ohm 0...20 mA | 570 Ohm 0...21 mA |
| Analogue output number | 4 |
| Analogue output type | Current: 4...20 mA |
| Analogue output resolution | 15 bits + sign |
| Topology | Point-to-point |
| Function available | I/O mapping |
| Net weight | 0.223 kg |
| Ambient air temperature for operation | 0…60 °C |
| Directives | 2014/35/EU - low voltage directive | 2014/30/EU - electromagnetic compatibility |
| Product certifications | CE | RCM | CSA | EAC | Merchant Navy | UL |
| Standards | IEC 61010-2-201 | IEC 61131-2 | UL 61010-2-201 | CSA C22.2 No 61010-2-201 |
| Protective treatment | Standard version |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.500 cm |
| Package 1 Width | 11.100 cm |
| Package 1 Length | 11.800 cm |
| Package 1 Weight | 216.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 3.571 kg |
