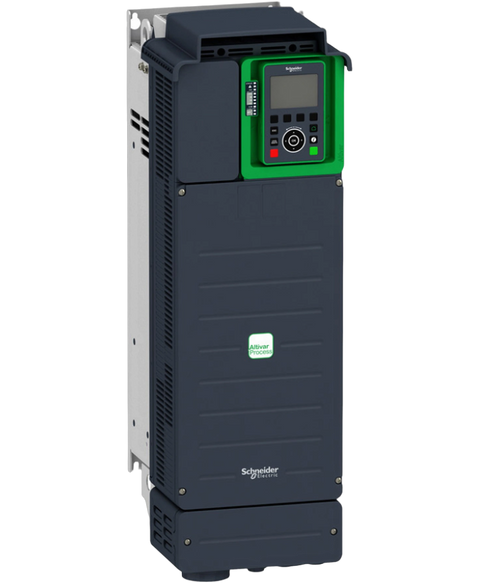

Schneider Electric ATV930D45N4
The ATV930D45N4, a variable speed drive from Schneider Electric's Altivar series, delivers versatile motor control for permanent magnet synchronous motors. It operates efficiently at input voltages ranging from 380 to 480 volts AC and is designed for a 3-phase network.
This Schneider Electric ATV930D45N4 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives range and is referenced internally as PartLogic SKU PL26805461493.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Schneider Electric |
| Product Type | Variable Speed Drive |
| Product Line | Altivar |
| Part Number | ATV930D45N4 |
| EAN | 3606480883385 |
| Weight | 79.00 lbs (35.83 kg) |
| Protection Rating | IP21 |
| Supply Frequency | 50 to 60 Hertz |
| Rated Supply Voltage | 380 to 480 Volts AC |
| Motor Type | Permanent magnet synchronous motor |
| Braking Unit | Brake chopper and DC injection brake |
| Network Phase Type | 3-phase |
| Electrical Connection Type | Screw-type terminals |
| Number of Inputs/Outputs | 10 discrete inputs, 3 analog inputs, 2 discrete outputs, 2 analog outputs, and 3 relay outputs |
| Physical Interface Type | 2-wire RS-485 Modbus Serial interface |
| Connector Type | Two RJ-45 Modbus TCP/Ethernet IP connectors |
| Ambient Operating Temperature | -15 to 50°C (in a non-condensing environment) |
| Communication Protocol | Modbus TCP, Modbus Serial, and Ethernet/IP protocols |
| Cooling Method | Forced cooling |
| Mounting Method | Wall mount |
| Brand | Schneider Electric |
