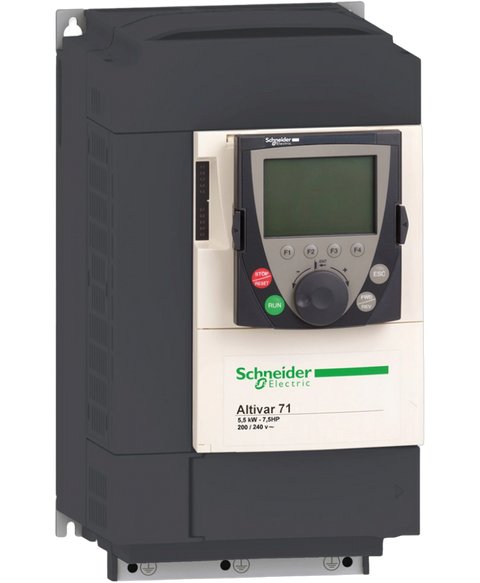

Schneider Electric ATV71HU75N4Z
The ATV71HU75N4Z from Schneider Electric is a variable speed drive tailored for optimal motor control. Designed to handle a power rating of 7.5 kW, it operates seamlessly in three-phase systems, accommodating a maximum motor cable length of 100 m while ensuring efficient performance.
This Schneider Electric ATV71HU75N4Z is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives range and is referenced internally as PartLogic SKU PL26805622622.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Schneider Electric |
| Product Line | Altivar |
| Part Number | ATV71HU75N4Z |
| EAN | 3389118064676 |
| Weight | 12.19 lbs (5.53 kg) |
| Series | AC Drives |
| Product | Variable Speed Drive |
| Motor Power | 7.5 kW |
| Number of Phases | 3 |
| Maximum Motor Cable Length | 100 m |
| Power Supply Voltage | 380/480 V |
| Line Current | 22.2A/27A |
| EMC Filter | Integrated |
| Assembly Style | With Heat Sink |
| Apparent Power | 17.8 kVA |
| Nominal Output Current | 14A/17.6A |
| Output Frequency | 0.1 to 599 Hz |
| Nominal Switching Frequency | 4 kHz |
| Minimum Switching Current | 3 mA |
| Insulation Resistance | > 1 mOhm 500 V DC for 1 minute to earth |
| Communication Port Protocol | Modbus, CANopen |
| Brand | Schneider Electric |
