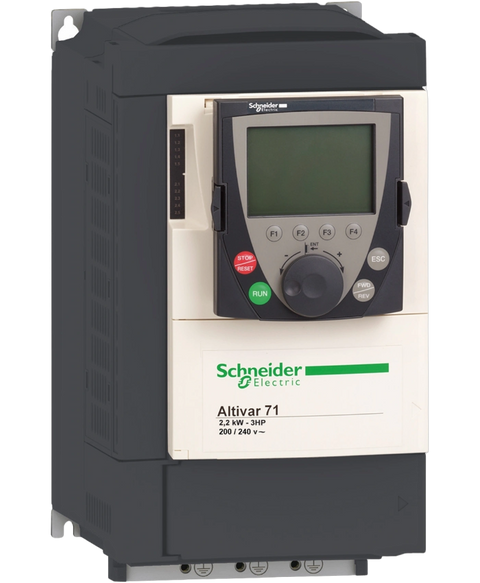

Product image for illustrative purposes only. Actual item may vary.
Schneider Electric ATV71HU40N4
The ATV71HU40N4 from Schneider Electric is a robust variable speed drive. It operates efficiently within the power supply voltage range of 380 to 480 volts AC, accommodating a 3-phase motor with a rated power of 4 kW.
This Schneider Electric ATV71HU40N4 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives range and is referenced internally as PartLogic SKU PL26907877467.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$1,105.68
(inc. GST)
In Stock
| Range of product | Altivar 71 |
| Product or component type | Variable speed drive |
| Product specific application | Complex, high-power machines |
| Component name | ATV71 |
| Motor power kW | 4 kW, 3 phases at 380...480 V |
| Motor power hp | 5 hp, 3 phases at 380...480 V |
| Maximum motor cable length | 50 m shielded cable | 100 m unshielded cable |
| power supply voltage | 380...480 V - 15...10 % |
| Network number of phases | 3 phases |
| Line current | 11.5 A for 480 V 3 phases 4 kW / 5 hp | 14.1 A for 380 V 3 phases 4 kW / 5 hp |
| EMC filter | Integrated |
| Assembly style | With heat sink |
| Apparent power | 9.3 kVA at 380 V 3 phases 4 kW / 5 hp |
| Prospective line Isc | 5 kA for 3 phases |
| Nominal output current | 10.5 A at 4 kHz 380 V 3 phases 4 kW / 5 hp | 7.6 A at 4 kHz 460 V 3 phases 4 kW / 5 hp |
| Maximum transient current | 15.8 A for 60 s 3 phases 4 kW / 5 hp | 17.3 A for 2 s 3 phases 4 kW / 5 hp |
| Output frequency | 0.1…599 Hz |
| Nominal switching frequency | 4 kHz |
| Switching frequency | 1...16 kHz adjustable | 4...16 kHz with derating factor |
| Asynchronous motor control profile | Flux vector control (FVC) with sensor (current vector) | ENA (Energy adaptation) system for unbalanced loads | Sensorless flux vector control (SFVC) (voltage or current vector) | Voltage/frequency ratio (2 or 5 points) |
| Type of polarization | No impedance for Modbus |
| Product destination | Asynchronous motors | Synchronous motors |
| power supply voltage limits | 323…528 V |
| power supply frequency | 50...60 Hz - 5...5 % |
| power supply frequency limits | 47.5...63 Hz |
| Speed range | 1…100 for asynchronous motor in open-loop mode, without speed feedback | 1…1000 for asynchronous motor in closed-loop mode with encoder feedback | 1…50 for synchronous motor in open-loop mode, without speed feedback |
| Speed accuracy | +/- 0.01 % of nominal speed in closed-loop mode with encoder feedback 0.2 Tn to Tn | +/- 10 % of nominal slip without speed feedback 0.2 Tn to Tn |
| Torque accuracy | +/- 15 % in open-loop mode, without speed feedback | +/- 5 % in closed-loop mode with encoder feedback |
| Transient overtorque | 170 % of nominal motor torque +/- 10 % for 60 s every 10 minutes | 220 % of nominal motor torque +/- 10 % for 2 s |
| Braking torque | <= 150 % with braking or hoist resistor | 30 % without braking resistor |
| Synchronous motor control profile | Vector control without speed feedback |
| Regulation loop | Adjustable PI regulator |
| Motor slip compensation | Automatic whatever the load | Suppressable | Not available in voltage/frequency ratio (2 or 5 points) | Adjustable |
| diagnostic | 1 LED (red) for drive voltage |
| Output voltage | <= power supply voltage |
| Insulation | Electrical between power and control |
| type of cable for mounting in an enclosure | With a NEMA Type1 kit: 3 wire(s)UL 508 cable at 40 °C, copper 75 °C / PVC | With an IP21 or an IP31 kit: 3 wire(s)IEC cable at 40 °C, copper 70 °C / PVC | Without mounting kit: 1 wire(s)IEC cable at 45 °C, copper 70 °C / PVC | Without mounting kit: 1 wire(s)IEC cable at 45 °C, copper 90 °C / XLPE/EPR |
| Electrical connection | Terminal, clamping capacity: 2.5 mm², AWG 14 (AI1-/AI1+, AI2, AO1, R1A, R1B, R1C, R2A, R2B, LI1...LI6, PWR) | Terminal, clamping capacity: 4 mm², AWG 10 (L1/R, L2/S, L3/T, U/T1, V/T2, W/T3, PC/-, PO, PA/+, PA, PB) |
| Tightening torque | 0.6 N.m (AI1-/AI1+, AI2, AO1, R1A, R1B, R1C, R2A, R2B, LI1...LI6, PWR) | 1.4 N.m, 12.3 lb.in (L1/R, L2/S, L3/T, U/T1, V/T2, W/T3, PC/-, PO, PA/+, PA, PB) |
| Supply | Internal supply for reference potentiometer (1 to 10 kOhm): 10.5 V DC +/- 5 %, <10 mA, protection type: overload and short-circuit protection | Internal supply: 24 V DC (21…27 V), <200 mA, protection type: overload and short-circuit protection |
| Analogue input number | 2 |
| Analogue input type | AI1-/Al1+ bipolar differential voltage: +/- 10 V DC 24 V max, resolution 11 bits + sign | AI2 software-configurable current: 0...20 mA, impedance: 242 Ohm, resolution 11 bits | AI2 software-configurable voltage: 0...10 V DC 24 V max, impedance: 30000 Ohm, resolution 11 bits |
| input sampling time | 2 ms +/- 0.5 ms (AI1-/Al1+) - analog input(s) | 2 ms +/- 0.5 ms (Al2) - analog input(s) | 2 ms +/- 0.5 ms (LI1...LI5) - discrete input(s) | 2 ms +/- 0.5 ms (LI6)if configured as logic input - discrete input(s) |
| Response time | <= 100 ms in STO (Safe Torque Off) | AO1 2 ms, tolerance +/- 0.5 ms for analog output(s) | R1A, R1B, R1C 7 ms, tolerance +/- 0.5 ms for discrete output(s) | R2A, R2B 7 ms, tolerance +/- 0.5 ms for discrete output(s) |
| absolute accuracy precision | +/- 0.6 % (AI1-/Al1+) for a temperature variation 60 °C | +/- 0.6 % (AI2) for a temperature variation 60 °C | +/- 1 % (AO1) for a temperature variation 60 °C |
| Linearity error | +/- 0.15 % of maximum value (AI1-/Al1+, AI2) | +/- 0.2 % (AO1) |
| Analogue output number | 1 |
| Analogue output type | AO1 software-configurable logic output 10 V 20 mA | AO1 software-configurable current 0...20 mA, impedance: 500 Ohm, resolution 10 bits | AO1 software-configurable voltage 0...10 V DC, impedance: 470 Ohm, resolution 10 bits |
| Discrete output number | 2 |
| Discrete output type | Configurable relay logic: (R1A, R1B, R1C) NO/NC - 100000 cycles | Configurable relay logic: (R2A, R2B) NO - 100000 cycles |
| Minimum switching current | 3 mA at 24 V DC for configurable relay logic |
| Maximum switching current | R1, R2: 2 A at 250 V AC inductive load, cos phi = 0.4 | R1, R2: 2 A at 30 V DC inductive load, cos phi = 0.4 | R1, R2: 5 A at 250 V AC resistive load, cos phi = 1 | R1, R2: 5 A at 30 V DC resistive load, cos phi = 1 |
| Discrete input number | 7 |
| Discrete input type | LI1...LI5: programmable 24 V DC with level 1 PLC, impedance: 3500 Ohm | LI6: switch-configurable 24 V DC with level 1 PLC, impedance: 3500 Ohm | LI6: switch-configurable PTC probe 0…6, impedance: 1500 Ohm | PWR: safety input 24 V DC, impedance: 1500 Ohm conforming to ISO 13849-1 level d |
| Discrete input logic | Negative logic (sink) (LI1...LI5), > 16 V (state 0), < 10 V (state 1) | Positive logic (source) (LI1...LI5), < 5 V (state 0), > 11 V (state 1) | Negative logic (sink) (LI6)if configured as logic input, > 16 V (state 0), < 10 V (state 1) | Positive logic (source) (LI6)if configured as logic input, < 5 V (state 0), > 11 V (state 1) |
| Acceleration and deceleration ramps | S, U or customized | Linear adjustable separately from 0.01 to 9000 s | Automatic adaptation of ramp if braking capacity exceeded, by using resistor |
| Braking to standstill | By DC injection |
| Protection type | Against exceeding limit speed: drive | Against input phase loss: drive | Break on the control circuit: drive | Input phase breaks: drive | Line supply overvoltage: drive | Line supply undervoltage: drive | Overcurrent between output phases and earth: drive | Overheating protection: drive | Overvoltages on the DC bus: drive | Short-circuit between motor phases: drive | Thermal protection: drive | Motor phase break: motor | Power removal: motor | Thermal protection: motor |
| Insulation resistance | > 1 mOhm 500 V DC for 1 minute to earth |
| Frequency resolution | Analog input: 0.024/50 Hz | Display unit: 0.1 Hz |
| Communication port protocol | CANopen | Modbus |
| Connector type | 1 RJ45 (on front face) for Modbus | 1 RJ45 (on terminal) for Modbus | Male SUB-D 9 on RJ45 for CANopen |
| Physical interface | 2-wire RS 485 for Modbus |
| Transmission frame | RTU for Modbus |
| Transmission rate | 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps for Modbus on terminal | 9600 bps, 19200 bps for Modbus on front face | 20 kbps, 50 kbps, 125 kbps, 250 kbps, 500 kbps, 1 Mbps for CANopen |
| Data format | 8 bits, 1 stop, even parity for Modbus on front face | 8 bits, odd even or no configurable parity for Modbus on terminal |
| Number of addresses | 1…127 for CANopen | 1…247 for Modbus |
| Method of access | Slave CANopen |
| Marking | CE |
| Operating position | Vertical +/- 10 degree |
| Height | 260 mm |
| Depth | 187 mm |
| Width | 155 mm |
| Net weight | 4 kg |
| Functionality | Full |
| Specific application | Other applications |
| Option card | Communication card for CC-Link | Controller inside programmable card | Communication card for DeviceNet | Communication card for EtherNet/IP | Communication card for Fipio | I/O extension card | Communication card for Interbus-S | Interface card for encoder | Communication card for Modbus Plus | Communication card for Modbus TCP | Communication card for Modbus/Uni-Telway | Overhead crane card | Communication card for Profibus DP | Communication card for Profibus DP V1 |
| Noise level | 54.5 dB conforming to 86/188/EEC |
| Dielectric strength | 3535 V DC between earth and power terminals | 5092 V DC between control and power terminals |
| Electromagnetic compatibility | 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 | Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6 | Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 | Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 | Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 | Voltage dips and interruptions immunity test conforming to IEC 61000-4-11 |
| Standards | EN/IEC 61800-5-1 | IEC 60721-3-3 class 3C1 | IEC 60721-3-3 class 3S2 | EN 61800-3 environments 2 category C2 | EN 61800-3 environments 1 category C2 | EN/IEC 61800-3 | UL Type 1 | EN 55011 class A group 1 |
| Product certifications | GOST | NOM 117 | UL | C-Tick | CSA |
| Pollution degree | 2 conforming to EN/IEC 61800-5-1 |
| IP degree of protection | IP20 |
| Vibration resistance | 1 gn (f= 13…200 Hz) conforming to EN/IEC 60068-2-6 | 1.5 mm peak to peak (f= 3…13 Hz) conforming to EN/IEC 60068-2-6 |
| Shock resistance | 15 gn for 11 ms conforming to EN/IEC 60068-2-27 |
| Relative humidity | 5…95 % without condensation conforming to IEC 60068-2-3 | 5…95 % without dripping water conforming to IEC 60068-2-3 |
| Ambient air temperature for operation | -10…50 °C (without derating) |
| Ambient air temperature for storage | -25…70 °C |
| Operating altitude | <= 1000 m without derating | 1000...3000 m with current derating 1 % per 100 m |
