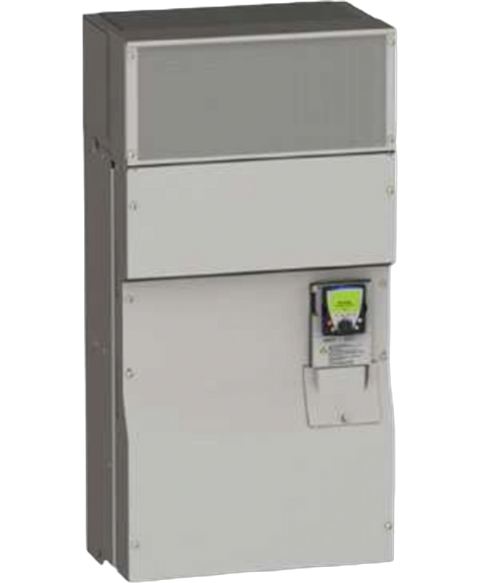

Schneider Electric ATV71HD55N4
The ATV71HD55N4 from Schneider Electric is a variable speed drive suitable for various applications. It accommodates motor power up to 55 kW and a maximum horsepower rating of 75 Hp, making it adaptable for numerous industrial tasks.
This Schneider Electric ATV71HD55N4 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives range and is referenced internally as PartLogic SKU PL26907307350.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Schneider Electric |
| Product Line | Altivar |
| Part Number | ATV71HD55N4 |
| EAN | 3389118069541 |
| Weight | 120.00 lbs (54.43 kg) |
| Series | AC Drives |
| Product | Variable Speed Drive |
| Motor Power | 55 kW |
| Maximum Horsepower Rating | 75 Hp |
| Maximum Motor Cable Length | 100 m |
| Power Supply Voltage | 380 to 480 V |
| Number of Phases | 3 |
| Line Current | 101A/120A |
| EMC Filter | Integrated |
| Assembly Style | With Heat Sink |
| Apparent Power | 79 kVA |
| Prospective Line Isc | 22 kA |
| Nominal Output Current | 116A |
| Maximum Transient Current | 174 A |
| Output Frequency | 0.1 to 500 Hz |
| Noise Level | 63.7 dB |
| Brand | Schneider Electric |
