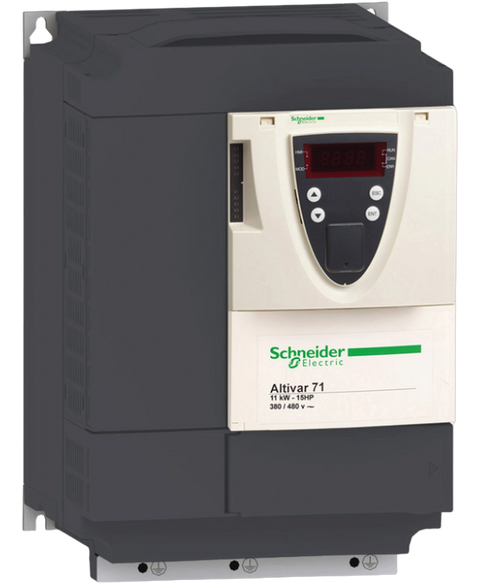

Schneider Electric ATV71HD11N4Z
The ATV71HD11N4Z from Schneider Electric's Altivar series is a high-performance variable frequency drive. It provides an output power rating of 11 kW with a maximum output current of 21.7 A, operating efficiently within the input voltage range of 380V to 480V AC.
This Schneider Electric ATV71HD11N4Z is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives range and is referenced internally as PartLogic SKU PL26801460949.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Schneider Electric |
| Product Line | Altivar |
| Part Number | ATV71HD11N4Z |
| EAN | 3389118064683 |
| Weight | 16.94 lbs (7.68 kg) |
| Rated Output Power | 11 kW |
| Rated Output Current | 21.7 A |
| Rated Input Voltage | 380V to 480V AC |
| Rated Input Current | 16.2 A |
| Input Frequency Range | 50/60 Hz |
| Output Frequency Range | 0 - 590 Hz |
| Efficiency | ≥ 98% |
| Cooling Type | Forced air cooling |
| Operating Temperature Range | -10°C to +50°C |
| Storage Temperature Range | -25°C to +70°C |
| Degree of Protection | IP20 |
| Control Type | Vector control, V/f control, and sensorless control |
| Overload Capacity | 150% for 60 seconds |
| Mounting Type | Panel mount, DIN rail |
| Communication Interface | Modbus RTU, Profibus DP, CANopen |
| Brand | Schneider Electric |
