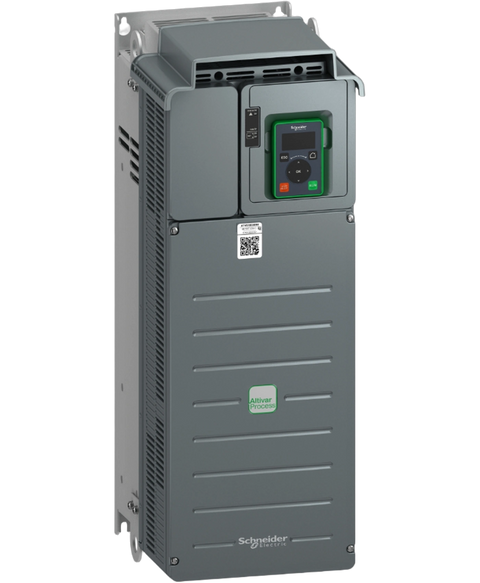

Schneider Electric ATV610D30N4
The ATV610D30N4 from Schneider Electric serves as a variable speed drive capable of delivering 30 kW and suitable for applications requiring up to 40 horsepower. This unit accommodates a voltage range from 380 to 460 V and provides a maximum output current of 61.5 A.
This Schneider Electric ATV610D30N4 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives range and is referenced internally as PartLogic SKU PL26805619581.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Schneider Electric |
| Product Type | Variable Speed Drive |
| Product Line | Altivar |
| Part Number | ATV610D30N4 |
| Weight | 56.19 lbs (25.49 kg) |
| Rated Power | 30 kW |
| Input Current (Max) | 62.5 A |
| Horsepower | 40 hp |
| Output Current | 61.5 A |
| Voltage Range | 380 to 460 V |
| Rated Torque | 12 Nm |
| Enclosure Rating | IP20 |
| EMC Filter | Integrated |
| Input Frequency | 50/60 Hz |
| Noise Level | 65 dB |
| Output Frequency | 0–500 Hz |
| Compliance | CE |
| Brand | Schneider Electric |
