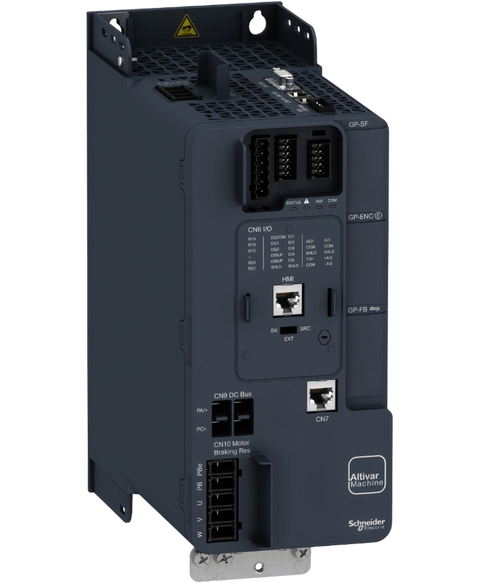

Product image for illustrative purposes only. Actual item may vary.
Schneider Electric ATV340U75N4
Var speed drive, 3-ph, 480VAC, 7.5kW; control , drive type:variable speed drive; compatible motor type:synchronous , asynchronous motors; power rating:7.5kW; NO. of phases:three phase; output current max:24A; ip rating:IP20 rohs compliant: yes
This Schneider Electric ATV340U75N4 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives range and is referenced internally as PartLogic SKU PL26805677756.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$1,263.03
(inc. GST)
In Stock
| Range of product | Altivar Machine ATV340 |
| Product or component type | Variable speed drive |
| Product specific application | Machine |
| Mounting mode | Cabinet mount |
| Variant | Standard version |
| Communication port protocol | Modbus serial |
| Option card | Communication module, Profibus DP V1 | Communication module, PROFINET | Communication module, DeviceNet | Communication module, CANopen | Communication module, EtherCAT |
| Network number of phases | 3 phases |
| Supply frequency | 50...60 Hz +/- 5 % |
| [Us] rated supply voltage | 380...480 V - 15...10 % |
| nominal output current | 16.5 A |
| Motor power kW | 11 kW for normal duty | 7.5 kW for heavy duty |
| Motor power hp | 15 hp for normal duty | 10 hp for heavy duty |
| EMC filter | Class C3 EMC filter integrated |
| IP degree of protection | IP20 |
| Discrete input number | 5 |
| Discrete input type | PTI programmable as pulse input: 0…30 kHz, 24 V DC (30 V) | DI1...DI5 safe torque off, 24 V DC (30 V), impedance: 3.5 kOhm | programmable |
| number of preset speeds | 16 preset speeds |
| Discrete output number | 2.0 |
| Discrete output type | Programmable output DQ1, DQ2 30 V DC 100 mA |
| Analogue input number | 2 |
| Analogue input type | AI1 software-configurable current: 0...20 mA, impedance: 250 Ohm, resolution 12 bits | AI1 software-configurable temperature probe or water level sensor | AI1 software-configurable voltage: 0...10 V DC, impedance: 31.5 kOhm, resolution 12 bits | AI2 software-configurable voltage: - 10...10 V DC, impedance: 31.5 kOhm, resolution 12 bits |
| Analogue output number | 1 |
| Analogue output type | Software-configurable voltage AQ1: 0...10 V DC impedance 470 Ohm, resolution 10 bits | Software-configurable current AQ1: 0...20 mA impedance 500 Ohm, resolution 10 bits |
| Relay output number | 2 |
| Output voltage | <= power supply voltage |
| Relay output type | Relay outputs R1A | Relay outputs R1C electrical durability 100000 cycles | Relay outputs R2A | Relay outputs R2C electrical durability 100000 cycles |
| Maximum switching current | Relay output R1C on resistive load, cos phi = 1: 3 A at 250 V AC | Relay output R1C on resistive load, cos phi = 1: 3 A at 30 V DC | Relay output R1C on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC | Relay output R1C on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC | Relay output R2C on resistive load, cos phi = 1: 5 A at 250 V AC | Relay output R2C on resistive load, cos phi = 1: 5 A at 30 V DC | Relay output R2C on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC | Relay output R2C on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC |
| Minimum switching current | Relay output R1B: 5 mA at 24 V DC | Relay output R2C: 5 mA at 24 V DC |
| Physical interface | 2-wire RS 485 |
| Connector type | 1 RJ45 |
| Method of access | Slave Modbus RTU |
| Transmission rate | 4.8 kbit/s | 9.6 kbit/s | 19.2 kbit/s | 38.4 kbit/s |
| Transmission frame | RTU |
| Number of addresses | 1…247 |
| Data format | 8 bits, configurable odd, even or no parity |
| Type of polarization | No impedance |
| 4 quadrant operation possible | True |
| Asynchronous motor control profile | Variable torque standard | Constant torque standard | Optimized torque mode |
| Synchronous motor control profile | Permanent magnet motor | Reluctance motor |
| Pollution degree | 2 conforming to IEC 61800-5-1 |
| Maximum output frequency | 0.599 kHz |
| Acceleration and deceleration ramps | Linear adjustable separately from 0.01...9999 s | S, U or customized |
| Motor slip compensation | Automatic whatever the load | Can be suppressed | Adjustable | Not available in permanent magnet motor law |
| Switching frequency | 2...16 kHz adjustable | 4...16 kHz with derating factor |
| Nominal switching frequency | 4 kHz |
| Braking to standstill | By DC injection |
| Brake chopper integrated | True |
| Line current | 22.0 A at 380 V (normal duty) | 17.7 A at 480 V (normal duty) | 25.6 A at 380 V (heavy duty) | 20.4 A at 480 V (heavy duty) |
| Maximum input current | 25.6 A |
| Maximum output voltage | 480 V |
| Apparent power | 17 kVA at 480 V (normal duty) | 17 kVA at 480 V (heavy duty) |
| Maximum transient current | 26.4 A during 60 s (normal duty) | 24.8 A during 60 s (heavy duty) | 32.4 A during 2 s (normal duty) | 29.7 A during 2 s (heavy duty) |
| Electrical connection | Screw terminal, clamping capacity: 4...6 mm² for DC bus | Screw terminal, clamping capacity: 0.2...2.5 mm² for control | Screw terminal, clamping capacity: 1.5...6 mm² for motor | Screw terminal, clamping capacity: 2.5...6 mm² for line side |
| Prospective line Isc | 22 kA |
| Base load current at high overload | 16.5 A |
| Base load current at low overload | 24.0 A |
| Power dissipation in W | Natural convection: 180 W at 380 V, switching frequency 4 kHz (heavy duty) | Forced convection: 180 W at 380 V, switching frequency 4 kHz (heavy duty) | Natural convection: 249 W at 380 V, switching frequency 4 kHz (normal duty) | Forced convection: 249 W at 380 V, switching frequency 4 kHz (normal duty) |
| With safety function Safely Limited Speed (SLS) | True |
| With safety function Safe brake management (SBC/SBT) | True |
| With safety function Safe Operating Stop (SOS) | False |
| With safety function Safe Position (SP) | False |
| With safety function Safe programmable logic | False |
| With safety function Safe Speed Monitor (SSM) | False |
| With safety function Safe Stop 1 (SS1) | True |
| With sft fct Safe Stop 2 (SS2) | False |
| With safety function Safe torque off (STO) | True |
| With safety function Safely Limited Position (SLP) | False |
| With safety function Safe Direction (SDI) | False |
| Protection type | Thermal protection: motor | Safe torque off: motor | Motor phase loss: motor | Thermal protection: drive | Safe torque off: drive | Overheating: drive | Overcurrent: drive | Output overcurrent between motor phase and earth: drive | Output overcurrent between motor phases: drive | Short-circuit between motor phase and earth: drive | Short-circuit between motor phases: drive | Motor phase loss: drive | DC Bus overvoltage: drive | Line supply overvoltage: drive | Line supply undervoltage: drive | Input supply loss: drive | Exceeding limit speed: drive | Break on the control circuit: drive |
| Width | 110.0 mm |
| Height | 270.0 mm |
| Depth | 234.0 mm |
| Net weight | 3.0 kg |
| Continuous output current | 24 A at 4 kHz for normal duty | 16.5 A at 4 kHz for heavy duty |
| Operating altitude | <= 3000 m with current derating above 1000m |
| Operating position | Vertical +/- 10 degree |
| Product certifications | UL | CSA | TÜV | EAC | CTick |
| Marking | CE |
| Standards | IEC 61800-3 | IEC 61800-5-1 | IEC 60721-3 | IEC 61508 | IEC 13849-1 | UL 618000-5-1 | UL 508C |
| Assembly style | With heat sink |
| Electromagnetic compatibility | Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 | Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 | Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 | 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 | Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6 |
| Environmental class (during operation) | Class 3C3 according to IEC 60721-3-3 | Class 3S3 according to IEC 60721-3-3 |
| Maximum acceleration under shock impact (during operation) | 70 m/s² at 22 ms |
| Maximum acceleration under vibrational stress (during operation) | 5 m/s² at 9...200 Hz |
| Maximum deflection under vibratory load (during operation) | 1.5 mm at 2...9 Hz |
| Permitted relative humidity (during operation) | Class 3K5 according to EN 60721-3 |
| Volume of cooling air | 76.0 m3/h |
| Type of cooling | Forced convection |
| Overvoltage category | Class III |
| Regulation loop | Adjustable PID regulator |
| Noise level | 46.5 dB |
| Ambient air transport temperature | -40…70 °C |
| Ambient air temperature for operation | -15…50 °C without derating (vertical position) | 50…60 °C with derating factor (vertical position) |
| Ambient air temperature for storage | -40…70 °C |
| Isolation | Between power and control terminals |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 13.200 cm |
| Package 1 Width | 37.000 cm |
| Package 1 Length | 32.000 cm |
| Package 1 Weight | 3.770 kg |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 75.000 cm |
| Package 2 Width | 60.000 cm |
| Package 2 Length | 80.000 cm |
| Package 2 Weight | 50.700 kg |
