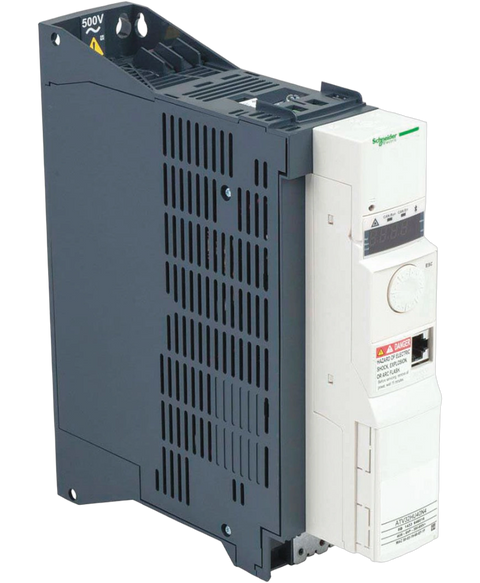

Schneider Electric ATV32HU40N4
The Schneider Electric ATV32HU40N4 is a variable-speed drive designed for asynchronous motor applications. In open-loop mode, it supports an operational range of 1 to 100 and operates at a supply frequency of 50,60 Hz.
This Schneider Electric ATV32HU40N4 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives range and is referenced internally as PartLogic SKU PL26805527778.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Schneider Electric |
| Product Type | Variable Speed Drive |
| Product Line | Altivar 32 |
| Part Number | ATV32HU40N4 |
| UPC | 785901648123 |
| Weight | 5.00 lbs (2.27 kg) |
| Supply Frequency | 50/60 Hz |
| Speed Range | 1–100 (asynchronous motor in open-loop mode) |
| Switching Frequency | 2–16 kHz adjustable |
| Braking Torque | ≤ 170% with braking resistor |
| Power Rating | 4 kW (5 HP) |
| Nominal Output Current | 9.5 A at 500 V, 4 kW / 5 HP |
| Torque Accuracy | ±15% |
| Protection Features | Overcurrent, phase loss, short-circuit, overheating |
| Supply Voltage | 380-500 V, 3-phase |
| Apparent Power | 9.1 kVA at 500 V, 4 kW / 5 HP |
| Transient Overtorque | 170–200% of rated torque |
| Communication Ports | Modbus, CANopen |
| Brand | Schneider Electric |
