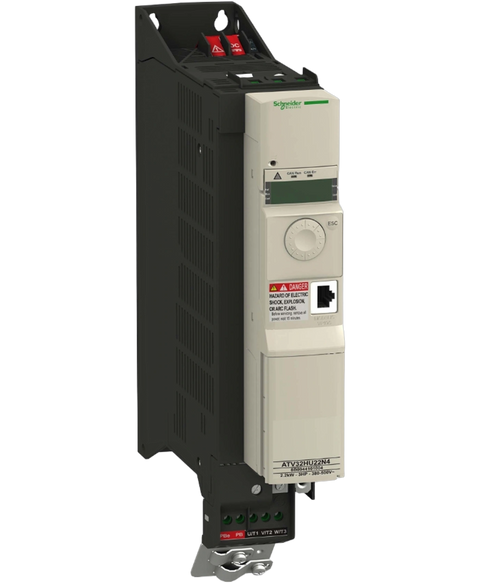

Product image for illustrative purposes only. Actual item may vary.
Schneider Electric ATV32HU30N4
Discontinued by manufacturer, drive, altivar 32, variable speed, 3kW, 3HP, three phase supply voltage: 380-500VAC, 50,60Hz
This Schneider Electric ATV32HU30N4 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives range and is referenced internally as PartLogic SKU PL26805563711.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$1,248.86
(inc. GST)
In Stock
| Range of product | Altivar 32 |
| Product or component type | Variable speed drive |
| Product destination | Asynchronous motors | Synchronous motors |
| Product specific application | Complex machines |
| Function available | - |
| Assembly style | With heat sink |
| Component name | ATV32 |
| EMC filter | Class C2 EMC filter integrated |
| Network number of phases | 3 phases |
| [Us] rated supply voltage | 380...500 V - 15...10 % |
| Supply voltage limits | 323…550 V |
| Supply frequency | 50...60 Hz - 5...5 % |
| Network frequency | 47.5...63 Hz |
| Motor power kW | 3 kW at 380...480 V |
| Line current | 11.1 A for 380 V 3 phases 3 kW | 8.4 A for 500 V 3 phases 3 kW |
| Apparent power | 7.3 kVA at 500 V 3 phases 3 kW |
| Prospective line Isc | 5 kA for 3 phases |
| Nominal output current | 7.1 A at 4 kHz 500 V 3 kW |
| Maximum transient current | 10.7 A for 60 s 3 kW |
| Output frequency | 0.0005…0.599 kHz |
| Nominal switching frequency | 4 kHz |
| Switching frequency | 2...16 kHz adjustable |
| Speed range | 1…100 for asynchronous motor in open-loop mode |
| Speed accuracy | +/- 10 % of nominal slip 0.2 Tn to Tn |
| Torque accuracy | +/- 15 % |
| Transient overtorque | 170…200 % |
| Braking torque | <= 170 % with braking resistor |
| Asynchronous motor control profile | Voltage/frequency ratio, 5 points | Voltage/frequency ratio, 2 points | Flux vector control without sensor, standard | Voltage/frequency ratio - Energy Saving, quadratic U/f | Flux vector control without sensor - Energy Saving, NoLoad law |
| Synchronous motor control profile | Vector control without sensor |
| Regulation loop | Adjustable PID regulator |
| Motor slip compensation | Automatic whatever the load | Not available in voltage/frequency ratio (2 or 5 points) | Adjustable 0...300 % |
| Local signalling | 1 LED red for drive voltage | 1 LED green for CANopen run | 1 LED red for CANopen error | 1 LED red for drive fault |
| Output voltage | <= power supply voltage |
| Noise level | 45 dB conforming to 86/188/EEC |
| Insulation | Electrical between power and control |
| Electrical connection | Screw terminal, clamping capacity: 0.5...1.5 mm², AWG 18...AWG 14 (control) | Removable screw terminals, clamping capacity: 1.5...2.5 mm², AWG 14...AWG 12 (motor/braking resistor) | Screw terminal, clamping capacity: 1.5...4 mm², AWG 14...AWG 10 (power supply) |
| Tightening torque | 0.5 N.m, 4.4 lb/ft (control) | 0.7 N.m, 7.1 lb/ft (motor/braking resistor) | 0.6 N.m, 5.3 lb/ft (power supply) |
| Supply | Internal supply for reference potentiometer (1 to 10 kOhm): 10.5 V DC +/- 5 %, <10 mA, protection type: overload and short-circuit protection |
| Analogue input number | 3 |
| Analogue input type | AI1 voltage: 0...10 V DC, impedance: 30000 Ohm, resolution 10 bits | AI2 bipolar differential voltage: +/- 10 V DC, impedance: 30000 Ohm, resolution 10 bits | AI3 current: 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration), impedance: 250 Ohm, resolution 10 bits |
| Sampling duration | 2 ms (AI1, AI2, AI3) - analog input(s) | 2 ms (AO1) - analog input(s) |
| Response time | LI1...LI6 8 ms, tolerance +/- 0.7 ms for logic output(s) | R1A, R1B, R1C 2 ms for relay output(s) | R2A, R2C 2 ms for relay output(s) |
| Accuracy | +/- 0.2 % (AI1, AI2, AI3) for a temperature of -10...60 °C | +/- 0.5 % (AI1, AI2, AI3) for a temperature of 25 °C | +/- 1 % (AO1) for a temperature of 25 °C | +/- 2 % (AO1) for a temperature of -10...60 °C |
| Linearity error | +/- 0.2...0.5 % of maximum value (AI1, AI2, AI3) | +/- 0.3 % (AO1) |
| Analogue output number | 1 |
| Analogue output type | AO1 software-configurable current 0...20 mA, impedance: 800 Ohm, resolution 10 bits | AO1 software-configurable voltage 0...10 V, impedance: 470 Ohm, resolution 10 bits |
| Discrete output number | 3 |
| Discrete output type | Configurable relay logic: (R1A, R1B, R1C) NO/NC - 100000 cycles | Configurable relay logic: (R2A, R2B) NO - 100000 cycles | Logic: (LO) |
| Minimum switching current | 5 mA at 24 V DC for configurable relay logic |
| Maximum switching current | R1: 3 A at 250 V AC resistive load, cos phi = 1 | R1: 4 A at 30 V DC resistive load, cos phi = 1 | R1, R2: 2 A at 250 V AC inductive load, cos phi = 0.4 | R1, R2: 2 A at 30 V DC inductive load, cos phi = 0.4 | R2: 5 A at 250 V AC resistive load, cos phi = 1 | R2: 5 A at 30 V DC resistive load, cos phi = 1 |
| Discrete input number | 7 |
| Discrete input type | Programmable (sink/source) (LI1...LI4)24...30 V DC, with level 1 PLC | Programmable as pulse input 20 kpps (LI5)24...30 V DC, with level 1 PLC | Switch-configurable PTC probe (LI6)24...30 V DC | Safe torque off (STO)24...30 V DC - 1500 Ohm |
| Discrete input logic | Negative logic (sink) (LI1...LI6), > 19 V (state 0), < 13 V (state 1) | Positive logic (source) (LI1...LI6), < 5 V (state 0), > 11 V (state 1) |
| Acceleration and deceleration ramps | Ramp switching | Deceleration ramp automatic stop DC injection | S | Linear | Deceleration ramp adaptation | U | CUS |
| Braking to standstill | By DC injection |
| Protection type | Input phase breaks: drive | Overcurrent between output phases and earth: drive | Overheating protection: drive | Short-circuit between motor phases: drive | Thermal protection: drive |
| Communication port protocol | CANopen | Modbus |
| Connector type | 1 RJ45 (on front face) for Modbus/CANopen |
| Physical interface | 2-wire RS 485 for Modbus |
| Transmission frame | RTU for Modbus |
| Type of polarization | No impedance for Modbus |
| Number of addresses | 1…127 for CANopen | 1…247 for Modbus |
| Method of access | Slave CANopen |
| Electromagnetic compatibility | 1.2/50 µs - 8/20 µs surge immunity test, level 3 conforming to IEC 61000-4-5 | Conducted radio-frequency immunity test, level 3 conforming to IEC 61000-4-6 | Electrical fast transient/burst immunity test, level 4 conforming to IEC 61000-4-4 | Electrostatic discharge immunity test, level 3 conforming to IEC 61000-4-2 | Radiated radio-frequency electromagnetic field immunity test, level 3 conforming to IEC 61000-4-3 | Voltage dips and interruptions immunity test conforming to IEC 61000-4-11 |
| Width | 60 mm |
| Height | 325 mm |
| Depth | 245 mm |
| Net weight | 3 kg |
| Option card | Communication card for CANopen daisy chain | Communication card for CANopen open style | Communication card for DeviceNet | Communication card for EtherNet/IP | Communication card for Profibus DP V1 |
| Functionality | Mid |
| Specific application | Other applications |
| Standards | EN/IEC 61800-3 | EN/IEC 61800-5-1 | EN 61800-3 environments 1 category C2 | EN 61800-3 environments 2 category C2 | EN 55011 class A group 1 |
| Product certifications | UL | NOM 117 | C-Tick | CSA | GOST |
| Marking | CE |
| Pollution degree | 2 conforming to EN/IEC 61800-5-1 |
| IP degree of protection | IP20 conforming to EN/IEC 61800-5-1 |
| Vibration resistance | 1 gn (f = 13…200 Hz) conforming to EN/IEC 60068-2-6 | 1.5 mm peak to peak (f = 3…13 Hz) conforming to EN/IEC 60068-2-6 |
| Shock resistance | 15 gn for 11 ms conforming to EN/IEC 60068-2-27 |
| Relative humidity | 5…95 % without condensation conforming to IEC 60068-2-3 | 5…95 % without dripping water conforming to IEC 60068-2-3 |
| Ambient air temperature for operation | -10…50 °C without derating | 50…60 °C with derating factor |
| Ambient air temperature for storage | -25…70 °C |
| Operating altitude | <= 1000 m without derating | 1000...3000 m with current derating 1 % per 100 m |
| Operating position | Vertical +/- 10 degree |
