Schneider Electric ATV32HU15N4

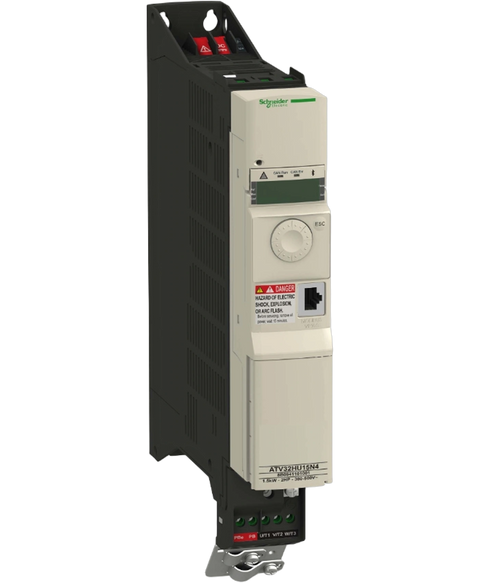

Product image for illustrative purposes only. Actual item may vary.
Schneider Electric logo

Schneider Electric ATV32HU15N4

SKU: PL26805667898
MPN: ATV32HU15N4

The ATV32HU15N4 from Schneider Electric is a variable speed drive designed to regulate motor speed accurately. It operates on a voltage input range from 380 to 500 VAC across a three-phase system, handling frequency inputs between 4.5 Hz and 63 Hz.

This Schneider Electric ATV32HU15N4 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives range and is referenced internally as PartLogic SKU PL26805667898.

Brand New - 12 Months Warranty
$795.24 (inc. GST)
In Stock
Range of product Altivar 32
Product or component type Variable speed drive
Product destination Asynchronous motors | Synchronous motors
Product specific application Complex machines
Function available -
Assembly style With heat sink
Component name ATV32
EMC filter Class C2 EMC filter integrated
Network number of phases 3 phases
[Us] rated supply voltage 380...500 V - 15...10 %
Supply voltage limits 323…550 V
Supply frequency 50...60 Hz - 5...5 %
Network frequency 47.5...63 Hz
Motor power kW 1.5 kW at 380...480 V
Motor power hp 2 hp at 380...480 V
Line current 4.9 A for 500 V 3 phases 1.5 kW / 2 hp | 6.5 A for 380 V 3 phases 1.5 kW / 2 hp
Apparent power 4.2 kVA at 500 V 3 phases 1.5 kW / 2 hp
Prospective line Isc 5 kA for 3 phases
Nominal output current 4.1 A at 4 kHz 500 V 1.5 kW / 2 hp
Maximum transient current 6.2 A for 60 s 1.5 kW / 2 hp
Output frequency 0.0005…0.599 kHz
Nominal switching frequency 4 kHz
Switching frequency 2...16 kHz adjustable
Speed range 1…100 for asynchronous motor in open-loop mode
Speed accuracy +/- 10 % of nominal slip 0.2 Tn to Tn
Torque accuracy +/- 15 %
Transient overtorque 170…200 %
Braking torque <= 170 % with braking resistor
Asynchronous motor control profile Voltage/frequency ratio, 2 points | Flux vector control without sensor, standard | Voltage/frequency ratio - Energy Saving, quadratic U/f | Flux vector control without sensor - Energy Saving, NoLoad law | Voltage/frequency ratio, 5 points
Synchronous motor control profile Vector control without sensor
Regulation loop Adjustable PID regulator
Motor slip compensation Not available in voltage/frequency ratio (2 or 5 points) | Adjustable 0...300 % | Automatic whatever the load
Local signalling 1 LED red for drive voltage | 1 LED green for CANopen run | 1 LED red for CANopen error | 1 LED red for drive fault
Output voltage <= power supply voltage
Noise level 43 dB conforming to 86/188/EEC
Insulation Electrical between power and control
Electrical connection Screw terminal, clamping capacity: 0.5...1.5 mm², AWG 18...AWG 14 (control) | Removable screw terminals, clamping capacity: 1.5...2.5 mm², AWG 14...AWG 12 (motor/braking resistor) | Screw terminal, clamping capacity: 1.5...4 mm², AWG 14...AWG 10 (power supply)
Tightening torque 0.5 N.m, 4.4 lb/ft (control) | 0.7 N.m, 7.1 lb/ft (motor/braking resistor) | 0.6 N.m, 5.3 lb/ft (power supply)
Supply Internal supply for reference potentiometer (1 to 10 kOhm): 10.5 V DC +/- 5 %, <10 mA, protection type: overload and short-circuit protection
Analogue input number 3
Analogue input type AI1 voltage: 0...10 V DC, impedance: 30000 Ohm, resolution 10 bits | AI2 bipolar differential voltage: +/- 10 V DC, impedance: 30000 Ohm, resolution 10 bits | AI3 current: 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration), impedance: 250 Ohm, resolution 10 bits
Sampling duration 2 ms (AI1, AI2, AI3) - analog input(s) | 2 ms (AO1) - analog input(s)
Response time LI1...LI6 8 ms, tolerance +/- 0.7 ms for logic output(s) | R1A, R1B, R1C 2 ms for relay output(s) | R2A, R2C 2 ms for relay output(s)
Accuracy +/- 0.2 % (AI1, AI2, AI3) for a temperature of -10...60 °C | +/- 0.5 % (AI1, AI2, AI3) for a temperature of 25 °C | +/- 1 % (AO1) for a temperature of 25 °C | +/- 2 % (AO1) for a temperature of -10...60 °C
Linearity error +/- 0.2...0.5 % of maximum value (AI1, AI2, AI3) | +/- 0.3 % (AO1)
Analogue output number 1
Analogue output type AO1 software-configurable current 0...20 mA, impedance: 800 Ohm, resolution 10 bits | AO1 software-configurable voltage 0...10 V, impedance: 470 Ohm, resolution 10 bits
Discrete output number 3
Discrete output type Configurable relay logic: (R1A, R1B, R1C) NO/NC - 100000 cycles | Configurable relay logic: (R2A, R2B) NO - 100000 cycles | Logic: (LO)
Minimum switching current 5 mA at 24 V DC for configurable relay logic
Maximum switching current R1: 3 A at 250 V AC resistive load, cos phi = 1 | R1: 4 A at 30 V DC resistive load, cos phi = 1 | R1, R2: 2 A at 250 V AC inductive load, cos phi = 0.4 | R1, R2: 2 A at 30 V DC inductive load, cos phi = 0.4 | R2: 5 A at 250 V AC resistive load, cos phi = 1 | R2: 5 A at 30 V DC resistive load, cos phi = 1
Discrete input number 7
Discrete input type Programmable (sink/source) (LI1...LI4)24...30 V DC, with level 1 PLC | Programmable as pulse input 20 kpps (LI5)24...30 V DC, with level 1 PLC | Switch-configurable PTC probe (LI6)24...30 V DC | Safe torque off (STO)24...30 V DC - 1500 Ohm
Discrete input logic Negative logic (sink) (LI1...LI6), > 19 V (state 0), < 13 V (state 1) | Positive logic (source) (LI1...LI6), < 5 V (state 0), > 11 V (state 1)
Acceleration and deceleration ramps Deceleration ramp automatic stop DC injection | Ramp switching | S | CUS | U | Linear | Deceleration ramp adaptation
Braking to standstill By DC injection
Protection type Input phase breaks: drive | Overcurrent between output phases and earth: drive | Overheating protection: drive | Short-circuit between motor phases: drive | Thermal protection: drive
Communication port protocol CANopen | Modbus
Connector type 1 RJ45 (on front face) for Modbus/CANopen
Physical interface 2-wire RS 485 for Modbus
Transmission frame RTU for Modbus
Type of polarization No impedance for Modbus
Number of addresses 1…127 for CANopen | 1…247 for Modbus
Method of access Slave CANopen
Electromagnetic compatibility 1.2/50 µs - 8/20 µs surge immunity test, level 3 conforming to IEC 61000-4-5 | Conducted radio-frequency immunity test, level 3 conforming to IEC 61000-4-6 | Electrical fast transient/burst immunity test, level 4 conforming to IEC 61000-4-4 | Electrostatic discharge immunity test, level 3 conforming to IEC 61000-4-2 | Radiated radio-frequency electromagnetic field immunity test, level 3 conforming to IEC 61000-4-3 | Voltage dips and interruptions immunity test conforming to IEC 61000-4-11
Width 45 mm
Height 325 mm
Depth 245 mm
Net weight 2.5 kg
Option card Communication card for CANopen daisy chain | Communication card for CANopen open style | Communication card for DeviceNet | Communication card for EtherNet/IP | Communication card for Profibus DP V1
Functionality Mid
Specific application Other applications
Standards EN 61800-3 environments 2 category C2 | EN 61800-3 environments 1 category C2 | EN 55011 class A group 1 | EN/IEC 61800-5-1 | EN/IEC 61800-3
Product certifications GOST | CSA | UL | C-Tick | NOM 117
Marking CE
Pollution degree 2 conforming to EN/IEC 61800-5-1
IP degree of protection IP20 conforming to EN/IEC 61800-5-1
Vibration resistance 1 gn (f = 13…200 Hz) conforming to EN/IEC 60068-2-6 | 1.5 mm peak to peak (f = 3…13 Hz) conforming to EN/IEC 60068-2-6
Shock resistance 15 gn for 11 ms conforming to EN/IEC 60068-2-27
Relative humidity 5…95 % without condensation conforming to IEC 60068-2-3 | 5…95 % without dripping water conforming to IEC 60068-2-3
Ambient air temperature for operation -10…50 °C without derating | 50…60 °C with derating factor
Ambient air temperature for storage -25…70 °C
Operating altitude <= 1000 m without derating | 1000...3000 m with current derating 1 % per 100 m
Operating position Vertical +/- 10 degree
