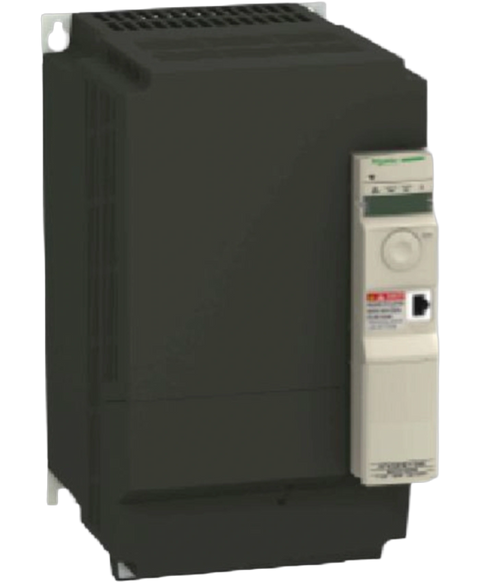

Schneider Electric ATV32HD15N4
The Schneider Electric ATV32HD15N4, part of the Altivar 32 series, is engineered as a variable-speed drive with robust features. It operates within a voltage range of 380 to 500 V and can handle a nominal output current of 41.6 A. It is rated for a power capacity of 15 kW or 20 HP.
This Schneider Electric ATV32HD15N4 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives range and is referenced internally as PartLogic SKU PL26805557587.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Schneider Electric |
| Product Type | Variable Speed Drive |
| Product Line | Altivar 32 |
| Part Number | ATV32HD15N4 |
| UPC | 785901956532 |
| Weight | 5.00 lbs (2.27 kg) |
| Nominal Output Current | 41.6 A at 500 V, 15 kW / 20 HP |
| Power Rating | 15 kW (20 HP) |
| Supply Voltage | 380-500 V, 3-phase |
| Switching Frequency | 2–16 kHz adjustable |
| Apparent Power | 47.5 kVA at 500 V, 15 kW / 20 HP |
| Torque Accuracy | ±15% |
| Transient Overtorque | 170–200% of rated torque |
| Protection Features | Overcurrent, phase loss, short-circuit, overheating |
| Communication Ports | Modbus, CANopen |
| Speed Range | 1–100 (asynchronous motor in open-loop mode) |
| Braking Torque | ≤ 170% with braking resistor |
| Supply Frequency | 50/60 Hz |
| Brand | Schneider Electric |
