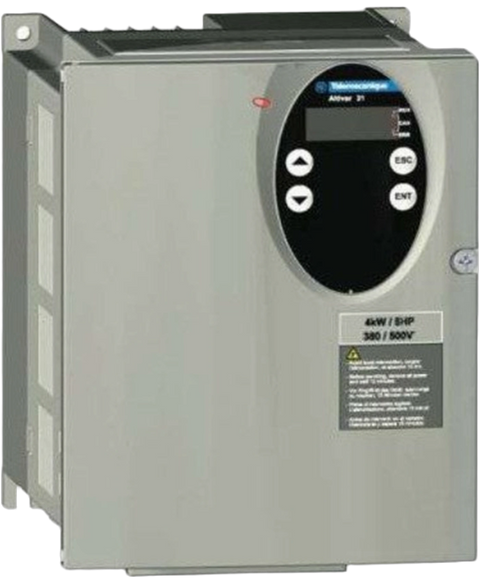

Schneider Electric ATV31HU55N4
The ATV31HU55N4, a model from Schneider Electric's Altivar series, acts as a variable frequency drive (VFD). This drive supports a power rating of 5.5 kW, approximately equivalent to 7.5 horsepower, and is designed to operate on a three-phase input voltage ranging from 380 to 500 volts AC. It delivers output voltage from 0 to 500 volts AC with an output frequency capability spanning from 0.5 Hz to 500 Hz, making it versatile for varied applications.
This Schneider Electric ATV31HU55N4 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives range and is referenced internally as PartLogic SKU PL26805563450.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Schneider Electric |
| Product Line | Altivar |
| Part Number | ATV31HU55N4 |
| UPC | 785901413127 |
| Weight | 10.56 lbs (4.79 kg) |
| Product | Variable Frequency Drive (VFD) |
| Power Rating | 5.5 kW (7.5 HP) |
| Input Voltage | Three-phase 380V - 500V AC |
| Output Voltage | Three-phase 0 to 500V AC |
| Output Frequency | 0.5 Hz - 500 Hz |
| Rated Output Current | 12A |
| Control Type | Scalar (V/f) and Sensorless Vector Control |
| Overload Capacity | 150% of nominal current for 60 seconds |
| Communication Protocols | Modbus (built-in) |
| Braking | Built-in dynamic braking unit |
| Environmental Protection | IP20 enclosure |
| Cooling Method | Forced ventilation with integrated fan |
| Operating Temperature | -10°C to 50°C (with derating above 40°C) |
| Display | 4-digit LED display with keypad |
| Control Inputs | 5 programmable logic inputs, 1 analog input |
| Brand | Schneider Electric |
