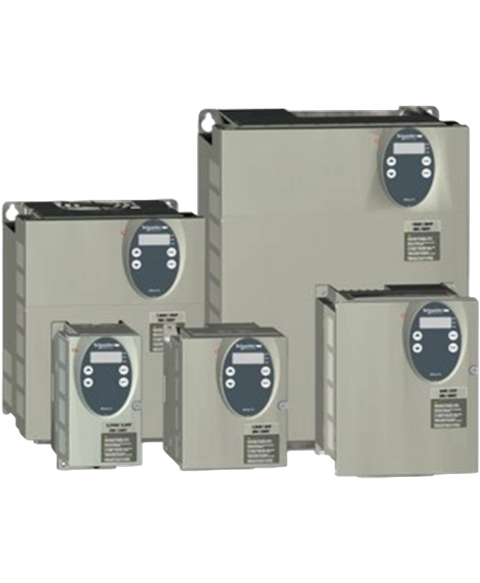

Schneider Electric ATV31HD11N4
Engineered as a variable frequency drive, the ATV31HD11N4 from Schneider Electric is tailored for basic machine control applications. This unit operates efficiently on a three-phase power supply with a motor power rating of 11 kW (15 HP) and integrates an EMC filter to ensure compliance with electromagnetic compatibility standards.
This Schneider Electric ATV31HD11N4 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives range and is referenced internally as PartLogic SKU PL26902348022.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Schneider Electric |
| Product Type | Variable frequency drive |
| Product Line | ATV31 |
| Part Number | ATV31HD11N4 |
| UPC | 785901477105 |
| Weight | 5.00 lbs (2.27 kg) |
| Application | Basic machine control |
| Assembly Style | With integrated heat sink |
| Integrated EMC Filter | Included |
| Input Voltage Range | 380–500 V ±5% |
| Input Frequency Range | 50–60 Hz ±5% |
| Phase | Three-phase |
| Motor Power Rating | 11 kW (4 kHz), 15 HP |
| Output Frequency Range | 0.0005–0.5 kHz |
| Control Method | Sensorless flux vector, constant torque |
| Switching Frequency | 2–16 kHz (variable) |
| Overload Capacity | 150–170% transient overtorque |
| Protection Features | Overvoltage, undervoltage, overcurrent, short-circuit |
| Operating Temperature | -10°C to 50°C (no derating) |
| Degree of Protection | IP20 (without cover), IP21 (terminals) |
| Brand | Schneider Electric |
