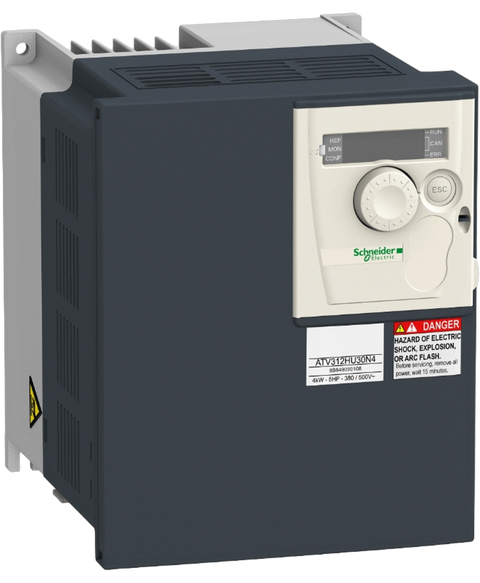

Product image for illustrative purposes only. Actual item may vary.
Schneider Electric ATV312HU30N4
The ATV312HU30N4 from Schneider Electric is a compact variable speed drive designed for motor control applications. Capable of handling a motor power of 3 kW, it supports a supply voltage range of 380 to 500 V and operates at frequencies of 50 or 60 Hz.
This Schneider Electric ATV312HU30N4 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives range and is referenced internally as PartLogic SKU PL26805575346.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$710.18
(inc. GST)
In Stock
| Product destination | Asynchronous motors |
| Component name | ATV312 |
| Motor power kW | 3 kW |
| Supply frequency | 50...60 Hz - 5...5 % |
| Network number of phases | 3 phases |
| Line current | 10.9 A at 380 V, Isc = 5 kA | 8.3 A at 500 V |
| Apparent power | 7.1 kVA |
| Maximum transient current | 10.7 A for 60 s |
| Power dissipation in W | 125 W at nominal load |
| Speed range | 1…50 |
| Electrical connection | Al1, Al2, Al3, AOV, AOC, R1A, R1B, R1C, R2A, R2B, LI1...LI6 terminal 2.5 mm² AWG 14 | L1, L2, L3, U, V, W, PA, PB, PA/+, PC/- terminal 5 mm² AWG 10 |
| Supply | Internal supply for logic inputs: 19...30 V 100 mA, protection type: overload and short-circuit protection | Internal supply for reference potentiometer (2.2 to 10 kOhm): 10...10.8 V 10 mA, protection type: overload and short-circuit protection |
| IP degree of protection | IP20 on upper part without cover plate | IP21 on connection terminals | IP31 on upper part | IP41 on upper part |
| Option card | Communication card for CANopen daisy chain | Communication card for DeviceNet | Communication card for Fipio | Communication card for Modbus TCP | Communication card for Profibus DP |
| Range of product | Altivar 312 |
| Product or component type | Variable speed drive |
| Product specific application | Simple machine |
| Communication port protocol | CANopen | Modbus |
| [Us] rated supply voltage | 380...500 V - 15...10 % |
| EMC filter | Integrated |
| Supply voltage limits | 323…550 V |
| Continuous output current | 7.1 A at 4 kHz |
| Output frequency | 0…500 Hz |
| Switching frequency | 2...16 kHz adjustable |
| Braking torque | 150 % during 60 s with braking resistor | 100 % with braking resistor continuously | 150 % without braking resistor |
| Output voltage | <= power supply voltage |
| Tightening torque | Al1, Al2, Al3, AOV, AOC, R1A, R1B, R1C, R2A, R2B, LI1...LI6: 0.6 N.m | L1, L2, L3, U, V, W, PA, PB, PA/+, PC/-: 1.2 N.m |
| Insulation | Electrical between power and control |
| Analogue input type | AI1 configurable voltage 0...10 V, input voltage 30 V max, impedance: 30000 Ohm | AI2 configurable voltage +/- 10 V, input voltage 30 V max, impedance: 30000 Ohm | AI3 configurable current 0...20 mA, impedance: 250 Ohm |
| Sampling duration | AI1, AI2, AI3: 8 ms analog | LI1...LI6: 4 ms discrete |
| Response time | AOV, AOC 8 ms for analog | R1A, R1B, R1C, R2A, R2B 8 ms for discrete |
| Linearity error | +/- 0.2 % for output |
| Analogue output type | AOC configurable current: 0...20 mA, impedance: 800 Ohm, resolution: 8 bits | AOV configurable voltage: 0...10 V, impedance: 470 Ohm, resolution: 8 bits |
| Discrete input logic | Logic input not wired (LI1...LI4), < 13 V (state 1) | Negative logic (source) (LI1...LI6), > 19 V (state 0) | Positive logic (source) (LI1...LI6), < 5 V (state 0), > 11 V (state 1) |
| Discrete output type | Configurable relay logic: (R1A, R1B, R1C) 1 NO + 1 NC - 100000 cycles | Configurable relay logic: (R2A, R2B) NC - 100000 cycles |
| Minimum switching current | R1-R2 10 mA at 5 V DC |
| Maximum switching current | R1-R2: 2 A at 250 V AC inductive load, cos phi = 0.4 and L/R = 7 ms | R1-R2: 2 A at 30 V DC inductive load, cos phi = 0.4 and L/R = 7 ms | R1-R2: 5 A at 250 V AC resistive load, cos phi = 1 and L/R = 0 ms | R1-R2: 5 A at 30 V DC resistive load, cos phi = 1 and L/R = 0 ms |
| Discrete input type | (LI1...LI6) programmable at 24 V, 0…100 mA for PLC, impedance: 3500 Ohm |
| Insulation resistance | >= 500 mOhm 500 V DC for 1 minute |
| Local signalling | 1 LED (red) for drive voltage | Four 7-segment display units for CANopen bus status |
| Time constant | 5 ms for reference change |
| Frequency resolution | Analog input: 0.1...100 Hz | Display unit: 0.1 Hz |
| Connector type | 1 RJ45 for Modbus/CANopen |
| Transmission rate | 10, 20, 50, 125, 250, 500 kbps or 1 Mbps for CANopen | 4800, 9600 or 19200 bps for Modbus |
| Number of addresses | 1…127 for CANopen | 1…247 for Modbus |
| Number of drive | 127 for CANopen | 31 for Modbus |
| Outer dimension | 402 x 239 x 192 mm | 184 x 140 x 150 mm | 215 x 185 x 158 mm |
| Discrete input number | 6 |
| Discrete output number | 2 |
| Analogue input number | 3 |
| Analogue output number | 1 |
| Physical interface | RS485 multidrop serial link |
| Transmission frame | RTU |
| Asynchronous motor control profile | Sensorless flux vector control with PWM type motor control signal | Factory set : constant torque |
| Transient overtorque | 170…200 % of nominal motor torque |
| Acceleration and deceleration ramps | Linear adjustable separately from 0.1 to 999.9 s | S, U or customized |
| Motor slip compensation | Adjustable | Automatic whatever the load | Suppressable |
| Nominal switching frequency | 4 kHz |
| Braking to standstill | By DC injection |
| Network frequency | 47.5...63 Hz |
| Prospective line Isc | 5 kA |
| Protection type | Input phase breaks: drive | Line supply overvoltage and undervoltage safety circuits: drive | Line supply phase loss safety function, for three phases supply: drive | Motor phase breaks: drive | Overcurrent between output phases and earth (on power up only): drive | Overheating protection: drive | Short-circuit between motor phases: drive | Thermal protection: motor |
| Width | 142 mm |
| Height | 184 mm |
| Depth | 152 mm |
| Net weight | 3.1 kg |
| Dielectric strength | 2410 V DC between earth and power terminals | 3400 V AC between control and power terminals |
| Protective treatment | TC |
| Vibration resistance | 1 gn (f= 13…150 Hz) conforming to EN/IEC 60068-2-6 | 1.5 mm (f= 3…13 Hz) conforming to EN/IEC 60068-2-6 |
| Shock resistance | 15 gn for 11 ms conforming to EN/IEC 60068-2-27 |
| Relative humidity | 5…95 % without condensation conforming to IEC 60068-2-3 | 5…95 % without dripping water conforming to IEC 60068-2-3 |
| Operating altitude | <= 1000 m without derating | 1000...3000 m with current derating 1 % per 100 m |
| Operating position | Vertical +/- 10 degree |
| Product certifications | DNV | UL | C-Tick | NOM | CSA | GOST |
| Marking | CE |
| Standards | IEC 61800-5-1 | IEC 61800-3 |
| Assembly style | With heat sink |
| Electromagnetic compatibility | 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 | Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 | Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 | Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 |
| Regulation loop | Frequency PI regulator |
| Pollution degree | 2 |
| Ambient air temperature for operation | -10…50 °C without derating (with protective cover on top of the drive) | -10…60 °C with derating factor (without protective cover on top of the drive) |
| Ambient air temperature for storage | -25…70 °C |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 21.365 cm |
| Package 1 Width | 21.544 cm |
| Package 1 Length | 21.72 cm |
| Package 1 Weight | 3.149 kg |
| Unit Type of Package 2 | S06 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 73.5 cm |
| Package 2 Width | 60.0 cm |
| Package 2 Length | 80.0 cm |
| Package 2 Weight | 48.0 kg |
