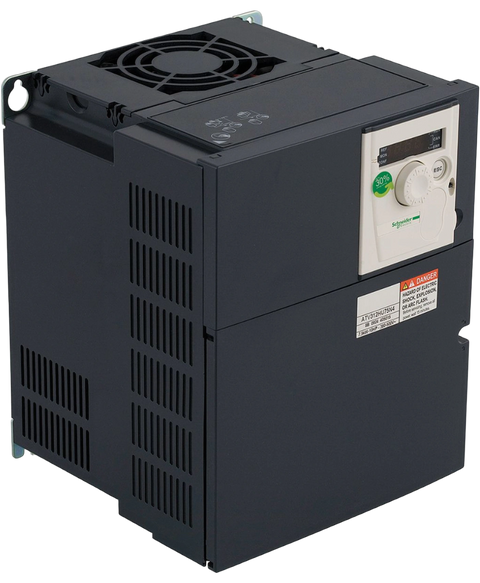

Schneider Electric ATV312HU22M2
The Schneider Electric ATV312HU22M2 is a variable-speed drive specifically designed for asynchronous motors. It has a motor power rating of 2.2 kW and supports voltages ranging from 200 to 240 V with certain tolerances.
This Schneider Electric ATV312HU22M2 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives range and is referenced internally as PartLogic SKU PL26805413316.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Schneider Electric |
| Product Type | Variable speed drive |
| Product Line | ATV312 |
| Part Number | ATV312HU22M2 |
| EAN | 3606480077593 |
| Weight | 5.00 lbs (2.27 kg) |
| Product Destination | Asynchronous motors |
| Motor Power | 2.2 kW (3 HP) |
| Rated Supply Voltage [Us] | 200…240 V (-15…+10%) |
| Supply Frequency | 50…60 Hz (-5…+5%) |
| Network Phases | Single-phase |
| Communication Protocols | CANopen, Modbus |
| Braking Torque | 150% for 60 s with resistor; 100% continuous |
| Switching Frequency | Nominal: 4 kHz (adjustable from 2 to 16 kHz) |
| Output Frequency | 0…500 Hz |
| Control Profile | Sensorless flux vector control, PWM |
| Apparent Power | 4.4 kVA |
| Line Current | 21.9 A at 200 V / 18.4 A at 240 V |
| Maximum Transient Current | 16.5 A for 60 s |
| Brand | Schneider Electric |
