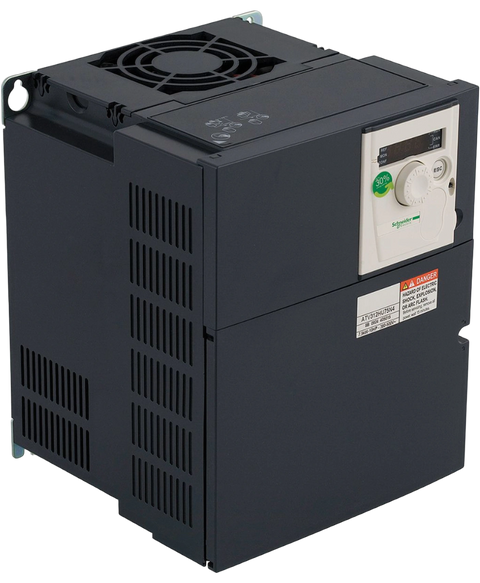

Schneider Electric ATV312HU15M2
The ATV312HU15M2 from Schneider Electric is designed as a variable speed drive, providing precise motor control in various applications. It operates with a motor power rating of 1.5 kW, equating to a maximum of 2 HP, with a rated supply voltage of 200 to 240 V, allowing for flexibility in installation.
This Schneider Electric ATV312HU15M2 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives range and is referenced internally as PartLogic SKU PL26805522757.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Schneider Electric |
| Product Line | ATV312 |
| Part Number | ATV312HU15M2 |
| EAN | 3606480077562 |
| Weight | 3.00 lbs (1.36 kg) |
| Name | Variable Speed Drive |
| Motor Power | 1.5 kW |
| Maximum Horse Power Rating | 2 HP |
| Rated Supply Voltage | 200 to 240 V ±15% |
| Supply Frequency | 50 to 60 Hz ±5% |
| Phase | Single phase |
| Line Current | 15.8 A at 200 V, Isc = 1 kA; 13.3 A at 240 V |
| Apparent Power | 3.2 kVA |
| Maximum Transient Current | 12 A for 60 seconds |
| Power Dissipation | 90 W at nominal load |
| Speed Range | 1 to 50 |
| IP Degree of Protection | IP20 on upper part without cover plate; IP21 on connection terminals; IP31 on upper part; IP41 on upper part |
| Output Frequency | 0 to 500 Hz |
| Nominal Switching Frequency | 4 kHz |
| Switching Frequency | 2 to 16 kHz adjustable |
| Brand | Schneider Electric |
